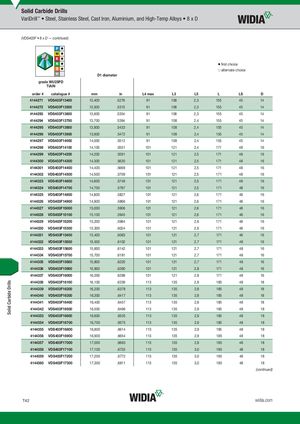

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403F • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4144271 VDS403F13400 13,400 .5276 91 108 2,3 155 45 14 4144272 VDS403F13500 13,500 .5315 91 108 2,3 155 45 14 4144293 VDS403F13600 13,600 .5354 91 108 2,3 155 45 14 4144294 VDS403F13700 13,700 .5394 91 108 2,4 155 45 14 4144295 VDS403F13800 13,800 .5433 91 108 2,4 155 45 14 4144296 VDS403F13900 13,900 .5472 91 108 2,4 155 45 14 4144297 VDS403F14000 14,000 .5512 91 108 2,4 155 45 14 4144298 VDS403F14100 14,100 .5551 101 121 2,4 171 48 16 4144299 VDS403F14200 14,200 .5591 101 121 2,5 171 48 16 4144300 VDS403F14300 14,300 .5630 101 121 2,5 171 48 16 4144301 VDS403F14400 14,400 .5669 101 121 2,5 171 48 16 4144302 VDS403F14500 14,500 .5709 101 121 2,5 171 48 16 4144323 VDS403F14600 14,600 .5748 101 121 2,5 171 48 16 4144324 VDS403F14700 14,700 .5787 101 121 2,5 171 48 16 4144325 VDS403F14800 14,800 .5827 101 121 2,6 171 48 16 4144326 VDS403F14900 14,900 .5866 101 121 2,6 171 48 16 4144327 VDS403F15000 15,000 .5906 101 121 2,6 171 48 16 4144328 VDS403F15100 15,100 .5945 101 121 2,6 171 48 16 4144329 VDS403F15200 15,200 .5984 101 121 2,6 171 48 16 4144330 VDS403F15300 15,300 .6024 101 121 2,6 171 48 16 4144331 VDS403F15400 15,400 .6063 101 121 2,7 171 48 16 4144332 VDS403F15500 15,500 .6102 101 121 2,7 171 48 16 4144333 VDS403F15600 15,600 .6142 101 121 2,7 171 48 16 4144334 VDS403F15700 15,700 .6181 101 121 2,7 171 48 16 4144335 VDS403F15800 15,800 .6220 101 121 2,7 171 48 16 4144336 VDS403F15900 15,900 .6260 101 121 2,8 171 48 16 4144337 VDS403F16000 16,000 .6299 101 121 2,8 171 48 16 4144338 VDS403F16100 16,100 .6339 113 135 2,8 185 48 18 4144339 VDS403F16200 16,200 .6378 113 135 2,8 185 48 18 4144340 VDS403F16300 16,300 .6417 113 135 2,8 185 48 18 4144341 VDS403F16400 16,400 .6457 113 135 2,8 185 48 18 4144342 VDS403F16500 16,500 .6496 113 135 2,9 185 48 18 4144353 VDS403F16600 16,600 .6535 113 135 2,9 185 48 18 4144354 VDS403F16700 16,700 .6575 113 135 2,9 185 48 18 4144355 VDS403F16800 16,800 .6614 113 135 2,9 185 48 18 4144356 VDS403F16900 16,900 .6654 113 135 2,9 185 48 18 4144357 VDS403F17000 17,000 .6693 113 135 2,9 185 48 18 4144358 VDS403F17100 17,100 .6732 113 135 3,0 185 48 18 4144359 VDS403F17200 17,200 .6772 113 135 3,0 185 48 18 4144360 VDS403F17300 17,300 .6811 113 135 3,0 185 48 18 (continued) T42 widia.com Solid Carbide Drills
