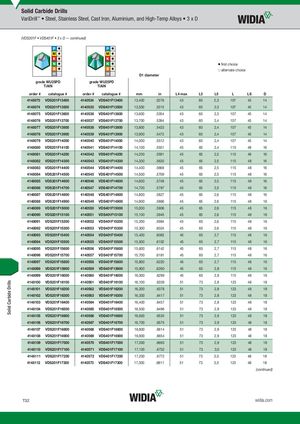

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (VDS201F • VDS401F • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d1eFW•UW2U5P25DPD VDgSr4a0d1eFW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148073 VDS201F13400 4140534 VDS401F13400 13,400 .5276 43 60 2,3 107 45 14 4148074 VDS201F13500 4140535 VDS401F13500 13,500 .5315 43 60 2,3 107 45 14 4148075 VDS201F13600 4140536 VDS401F13600 13,600 .5354 43 60 2,3 107 45 14 4148076 VDS201F13700 4140537 VDS401F13700 13,700 .5394 43 60 2,4 107 45 14 4148077 VDS201F13800 4140538 VDS401F13800 13,800 .5433 43 60 2,4 107 45 14 4148078 VDS201F13900 4140539 VDS401F13900 13,900 .5472 43 60 2,4 107 45 14 4148079 VDS201F14000 4140540 VDS401F14000 14,000 .5512 43 60 2,4 107 45 14 4148080 VDS201F14100 4140541 VDS401F14100 14,100 .5551 45 65 2,4 115 48 16 4148081 VDS201F14200 4140542 VDS401F14200 14,200 .5591 45 65 2,5 115 48 16 4148082 VDS201F14300 4140543 VDS401F14300 14,300 .5630 45 65 2,5 115 48 16 4148083 VDS201F14400 4140544 VDS401F14400 14,400 .5669 45 65 2,5 115 48 16 4148084 VDS201F14500 4140545 VDS401F14500 14,500 .5709 45 65 2,5 115 48 16 4148085 VDS201F14600 4140546 VDS401F14600 14,600 .5748 45 65 2,5 115 48 16 4148086 VDS201F14700 4140547 VDS401F14700 14,700 .5787 45 65 2,5 115 48 16 4148087 VDS201F14800 4140548 VDS401F14800 14,800 .5827 45 65 2,6 115 48 16 4148088 VDS201F14900 4140549 VDS401F14900 14,900 .5866 45 65 2,6 115 48 16 4148089 VDS201F15000 4140550 VDS401F15000 15,000 .5906 45 65 2,6 115 48 16 4148090 VDS201F15100 4140551 VDS401F15100 15,100 .5945 45 65 2,6 115 48 16 4148091 VDS201F15200 4140552 VDS401F15200 15,200 .5984 45 65 2,6 115 48 16 4148092 VDS201F15300 4140553 VDS401F15300 15,300 .6024 45 65 2,6 115 48 16 4148093 VDS201F15400 4140554 VDS401F15400 15,400 .6063 45 65 2,7 115 48 16 4148094 VDS201F15500 4140555 VDS401F15500 15,500 .6102 45 65 2,7 115 48 16 4148095 VDS201F15600 4140556 VDS401F15600 15,600 .6142 45 65 2,7 115 48 16 4148096 VDS201F15700 4140557 VDS401F15700 15,700 .6181 45 65 2,7 115 48 16 4148097 VDS201F15800 4140558 VDS401F15800 15,800 .6220 45 65 2,7 115 48 16 4148098 VDS201F15900 4140559 VDS401F15900 15,900 .6260 45 65 2,8 115 48 16 4148099 VDS201F16000 4140560 VDS401F16000 16,000 .6299 45 65 2,8 115 48 16 4148100 VDS201F16100 4140561 VDS401F16100 16,100 .6339 51 73 2,8 123 48 18 4148101 VDS201F16200 4140562 VDS401F16200 16,200 .6378 51 73 2,8 123 48 18 4148102 VDS201F16300 4140563 VDS401F16300 16,300 .6417 51 73 2,8 123 48 18 4148103 VDS201F16400 4140564 VDS401F16400 16,400 .6457 51 73 2,8 123 48 18 4148104 VDS201F16500 4140565 VDS401F16500 16,500 .6496 51 73 2,9 123 48 18 4148105 VDS201F16600 4140566 VDS401F16600 16,600 .6535 51 73 2,9 123 48 18 4148106 VDS201F16700 4140567 VDS401F16700 16,700 .6575 51 73 2,9 123 48 18 4148107 VDS201F16800 4140568 VDS401F16800 16,800 .6614 51 73 2,9 123 48 18 4148108 VDS201F16900 4140569 VDS401F16900 16,900 .6654 51 73 2,9 123 48 18 4148109 VDS201F17000 4140570 VDS401F17000 17,000 .6693 51 73 2,9 123 48 18 4148110 VDS201F17100 4140571 VDS401F17100 17,100 .6732 51 73 3,0 123 48 18 4148111 VDS201F17200 4140572 VDS401F17200 17,200 .6772 51 73 3,0 123 48 18 4148112 VDS201F17300 4140573 VDS401F17300 17,300 .6811 51 73 3,0 123 48 18 (continued) T32 widia.com Solid Carbide Drills
