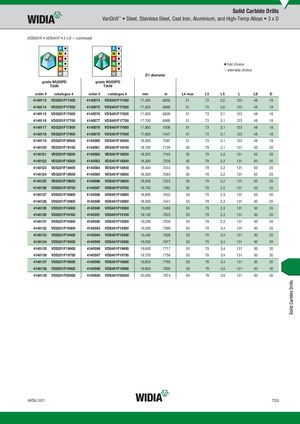

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (VDS201F • VDS401F • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d1eFW•UW2U5P25DPD VDgSr4a0d1eFW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148113 VDS201F17400 4140574 VDS401F17400 17,400 .6850 51 73 3,0 123 48 18 4148114 VDS201F17500 4140575 VDS401F17500 17,500 .6890 51 73 3,0 123 48 18 4148115 VDS201F17600 4140576 VDS401F17600 17,600 .6929 51 73 3,1 123 48 18 4148116 VDS201F17700 4140577 VDS401F17700 17,700 .6969 51 73 3,1 123 48 18 4148117 VDS201F17800 4140578 VDS401F17800 17,800 .7008 51 73 3,1 123 48 18 4148118 VDS201F17900 4140579 VDS401F17900 17,900 .7047 51 73 3,1 123 48 18 4148119 VDS201F18000 4140580 VDS401F18000 18,000 .7087 51 73 3,1 123 48 18 4148120 VDS201F18100 4140581 VDS401F18100 18,100 .7126 55 79 3,1 131 50 20 4148121 VDS201F18200 4140582 VDS401F18200 18,200 .7165 55 79 3,2 131 50 20 4148122 VDS201F18300 4140583 VDS401F18300 18,300 .7205 55 79 3,2 131 50 20 4148123 VDS201F18400 4140584 VDS401F18400 18,400 .7244 55 79 3,2 131 50 20 4148124 VDS201F18500 4140585 VDS401F18500 18,500 .7283 55 79 3,2 131 50 20 4148125 VDS201F18600 4140586 VDS401F18600 18,600 .7323 55 79 3,2 131 50 20 4148126 VDS201F18700 4140587 VDS401F18700 18,700 .7362 55 79 3,2 131 50 20 4148127 VDS201F18800 4140588 VDS401F18800 18,800 .7402 55 79 3,3 131 50 20 4148128 VDS201F18900 4140589 VDS401F18900 18,900 .7441 55 79 3,3 131 50 20 4148129 VDS201F19000 4140590 VDS401F19000 19,000 .7480 55 79 3,3 131 50 20 4148130 VDS201F19100 4140591 VDS401F19100 19,100 .7520 55 79 3,3 131 50 20 4148131 VDS201F19200 4140592 VDS401F19200 19,200 .7559 55 79 3,3 131 50 20 4148132 VDS201F19300 4140593 VDS401F19300 19,300 .7598 55 79 3,4 131 50 20 4148133 VDS201F19400 4140594 VDS401F19400 19,400 .7638 55 79 3,4 131 50 20 4148134 VDS201F19500 4140595 VDS401F19500 19,500 .7677 55 79 3,4 131 50 20 4148135 VDS201F19600 4140596 VDS401F19600 19,600 .7717 55 79 3,4 131 50 20 4148136 VDS201F19700 4140597 VDS401F19700 19,700 .7756 55 79 3,4 131 50 20 4148137 VDS201F19800 4140598 VDS401F19800 19,800 .7795 55 79 3,4 131 50 20 4148138 VDS201F19900 4140599 VDS401F19900 19,900 .7835 55 79 3,5 131 50 20 4148139 VDS201F20000 4140600 VDS401F20000 20,000 .7874 55 79 3,5 131 50 20 widia.com T33 Solid Carbide Drills
