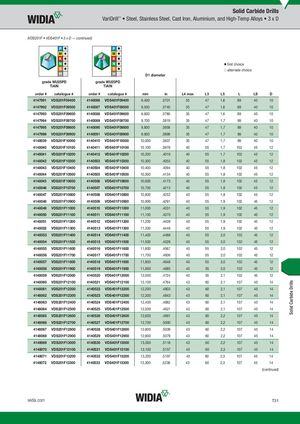

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (VDS201F • VDS401F • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d1eFW•UW2U5P25DPD VDgSr4a0d1eFW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4147991 VDS201F09400 4140086 VDS401F09400 9,400 .3701 35 47 1,6 89 40 10 4147992 VDS201F09500 4140087 VDS401F09500 9,500 .3740 35 47 1,6 89 40 10 4147993 VDS201F09600 4140088 VDS401F09600 9,600 .3780 35 47 1,6 89 40 10 4147994 VDS201F09700 4140089 VDS401F09700 9,700 .3819 35 47 1,7 89 40 10 4147995 VDS201F09800 4140090 VDS401F09800 9,800 .3858 35 47 1,7 89 40 10 4147996 VDS201F09900 4140091 VDS401F09900 9,900 .3898 35 47 1,7 89 40 10 4148039 VDS201F10000 4140410 VDS401F10000 10,000 .3937 35 47 1,7 89 40 10 4148040 VDS201F10100 4140411 VDS401F10100 10,100 .3976 40 55 1,7 102 45 12 4148041 VDS201F10200 4140412 VDS401F10200 10,200 .4016 40 55 1,7 102 45 12 4148042 VDS201F10300 4140503 VDS401F10300 10,300 .4055 40 55 1,8 102 45 12 4148043 VDS201F10400 4140504 VDS401F10400 10,400 .4094 40 55 1,8 102 45 12 4148044 VDS201F10500 4140505 VDS401F10500 10,500 .4134 40 55 1,8 102 45 12 4148045 VDS201F10600 4140506 VDS401F10600 10,600 .4173 40 55 1,8 102 45 12 4148046 VDS201F10700 4140507 VDS401F10700 10,700 .4213 40 55 1,8 102 45 12 4148047 VDS201F10800 4140508 VDS401F10800 10,800 .4252 40 55 1,8 102 45 12 4148048 VDS201F10900 4140509 VDS401F10900 10,900 .4291 40 55 1,9 102 45 12 4148049 VDS201F11000 4140510 VDS401F11000 11,000 .4331 40 55 1,9 102 45 12 4148050 VDS201F11100 4140511 VDS401F11100 11,100 .4370 40 55 1,9 102 45 12 4148051 VDS201F11200 4140512 VDS401F11200 11,200 .4409 40 55 1,9 102 45 12 4148052 VDS201F11300 4140513 VDS401F11300 11,300 .4449 40 55 1,9 102 45 12 4148053 VDS201F11400 4140514 VDS401F11400 11,400 .4488 40 55 2,0 102 45 12 4148054 VDS201F11500 4140515 VDS401F11500 11,500 .4528 40 55 2,0 102 45 12 4148055 VDS201F11600 4140516 VDS401F11600 11,600 .4567 40 55 2,0 102 45 12 4148056 VDS201F11700 4140517 VDS401F11700 11,700 .4606 40 55 2,0 102 45 12 4148057 VDS201F11800 4140518 VDS401F11800 11,800 .4646 40 55 2,0 102 45 12 4148058 VDS201F11900 4140519 VDS401F11900 11,900 .4685 40 55 2,0 102 45 12 4148059 VDS201F12000 4140520 VDS401F12000 12,000 .4724 40 55 2,1 102 45 12 4148060 VDS201F12100 4140521 VDS401F12100 12,100 .4764 43 60 2,1 107 45 14 4148061 VDS201F12200 4140522 VDS401F12200 12,200 .4803 43 60 2,1 107 45 14 4148062 VDS201F12300 4140523 VDS401F12300 12,300 .4843 43 60 2,1 107 45 14 4148063 VDS201F12400 4140524 VDS401F12400 12,400 .4882 43 60 2,1 107 45 14 4148064 VDS201F12500 4140525 VDS401F12500 12,500 .4921 43 60 2,1 107 45 14 4148065 VDS201F12600 4140526 VDS401F12600 12,600 .4961 43 60 2,2 107 45 14 4148066 VDS201F12700 4140527 VDS401F12700 12,700 .5000 43 60 2,2 107 45 14 4148067 VDS201F12800 4140528 VDS401F12800 12,800 .5039 43 60 2,2 107 45 14 4148068 VDS201F12900 4140529 VDS401F12900 12,900 .5079 43 60 2,2 107 45 14 4148069 VDS201F13000 4140530 VDS401F13000 13,000 .5118 43 60 2,2 107 45 14 4148070 VDS201F13100 4140531 VDS401F13100 13,100 .5157 43 60 2,3 107 45 14 4148071 VDS201F13200 4140532 VDS401F13200 13,200 .5197 43 60 2,3 107 45 14 4148072 VDS201F13300 4140533 VDS401F13300 13,300 .5236 43 60 2,3 107 45 14 (continued) widia.com T31 Solid Carbide Drills
