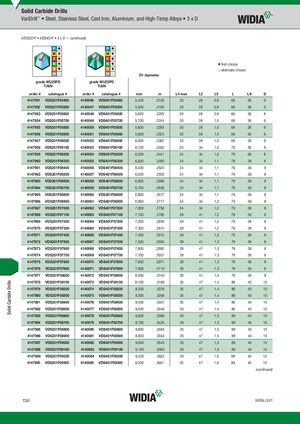

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (VDS201F • VDS401F • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d1eFW•UW2U5P25DPD VDgSr4a0d1eFW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4147951 VDS201F05400 4140046 VDS401F05400 5,400 .2126 20 28 0,9 66 36 6 4147952 VDS201F05500 4140047 VDS401F05500 5,500 .2165 20 28 0,9 66 36 6 4147953 VDS201F05600 4140048 VDS401F05600 5,600 .2205 20 28 0,9 66 36 6 4147954 VDS201F05700 4140049 VDS401F05700 5,700 .2244 20 28 1,0 66 36 6 4147955 VDS201F05800 4140050 VDS401F05800 5,800 .2283 20 28 1,0 66 36 6 4147956 VDS201F05900 4140051 VDS401F05900 5,900 .2323 20 28 1,0 66 36 6 4147957 VDS201F06000 4140052 VDS401F06000 6,000 .2362 20 28 1,0 66 36 6 4147958 VDS201F06100 4140053 VDS401F06100 6,100 .2402 24 34 1,0 79 36 8 4147959 VDS201F06200 4140054 VDS401F06200 6,200 .2441 24 34 1,0 79 36 8 4147960 VDS201F06300 4140055 VDS401F06300 6,300 .2480 24 34 1,1 79 36 8 4147961 VDS201F06400 4140056 VDS401F06400 6,400 .2520 24 34 1,1 79 36 8 4147962 VDS201F06500 4140057 VDS401F06500 6,500 .2559 24 34 1,1 79 36 8 4147963 VDS201F06600 4140058 VDS401F06600 6,600 .2598 24 34 1,1 79 36 8 4147964 VDS201F06700 4140059 VDS401F06700 6,700 .2638 24 34 1,1 79 36 8 4147965 VDS201F06800 4140060 VDS401F06800 6,800 .2677 24 34 1,1 79 36 8 4147966 VDS201F06900 4140061 VDS401F06900 6,900 .2717 24 34 1,2 79 36 8 4147967 VDS201F07000 4140062 VDS401F07000 7,000 .2756 24 34 1,2 79 36 8 4147968 VDS201F07100 4140063 VDS401F07100 7,100 .2795 29 41 1,2 79 36 8 4147969 VDS201F07200 4140064 VDS401F07200 7,200 .2835 29 41 1,2 79 36 8 4147970 VDS201F07300 4140065 VDS401F07300 7,300 .2874 29 41 1,2 79 36 8 4147971 VDS201F07400 4140066 VDS401F07400 7,400 .2913 29 41 1,3 79 36 8 4147972 VDS201F07500 4140067 VDS401F07500 7,500 .2953 29 41 1,3 79 36 8 4147973 VDS201F07600 4140068 VDS401F07600 7,600 .2992 29 41 1,3 79 36 8 4147974 VDS201F07700 4140069 VDS401F07700 7,700 .3031 29 41 1,3 79 36 8 4147975 VDS201F07800 4140070 VDS401F07800 7,800 .3071 29 41 1,3 79 36 8 4147976 VDS201F07900 4140071 VDS401F07900 7,900 .3110 29 41 1,3 79 36 8 4147977 VDS201F08000 4140072 VDS401F08000 8,000 .3150 29 41 1,4 79 36 8 4147978 VDS201F08100 4140073 VDS401F08100 8,100 .3189 35 47 1,4 89 40 10 4147979 VDS201F08200 4140074 VDS401F08200 8,200 .3228 35 47 1,4 89 40 10 4147980 VDS201F08300 4140075 VDS401F08300 8,300 .3268 35 47 1,4 89 40 10 4147981 VDS201F08400 4140076 VDS401F08400 8,400 .3307 35 47 1,4 89 40 10 4147982 VDS201F08500 4140077 VDS401F08500 8,500 .3346 35 47 1,4 89 40 10 4147983 VDS201F08600 4140078 VDS401F08600 8,600 .3386 35 47 1,5 89 40 10 4147984 VDS201F08700 4140079 VDS401F08700 8,700 .3425 35 47 1,5 89 40 10 4147985 VDS201F08800 4140080 VDS401F08800 8,800 .3465 35 47 1,5 89 40 10 4147986 VDS201F08900 4140081 VDS401F08900 8,900 .3504 35 47 1,5 89 40 10 4147987 VDS201F09000 4140082 VDS401F09000 9,000 .3543 35 47 1,5 89 40 10 4147988 VDS201F09100 4140083 VDS401F09100 9,100 .3583 35 47 1,5 89 40 10 4147989 VDS201F09200 4140084 VDS401F09200 9,200 .3622 35 47 1,6 89 40 10 4147990 VDS201F09300 4140085 VDS401F09300 9,300 .3661 35 47 1,6 89 40 10 (continued) T30 widia.com Solid Carbide Drills
