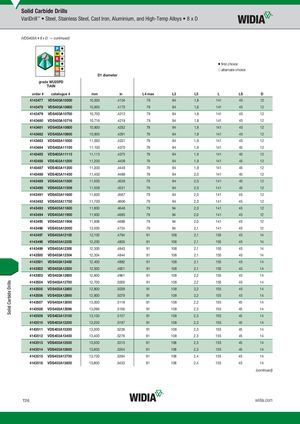

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4143477 VDS403A10500 10,500 .4134 79 94 1,8 141 45 12 4143478 VDS403A10600 10,600 .4173 79 94 1,8 141 45 12 4143479 VDS403A10700 10,700 .4213 79 94 1,8 141 45 12 4143480 VDS403A10716 10,716 .4219 79 94 1,8 141 45 12 4143481 VDS403A10800 10,800 .4252 79 94 1,8 141 45 12 4143482 VDS403A10900 10,900 .4291 79 94 1,9 141 45 12 4143483 VDS403A11000 11,000 .4331 79 94 1,9 141 45 12 4143484 VDS403A11100 11,100 .4370 79 94 1,9 141 45 12 4143485 VDS403A11113 11,113 .4375 79 94 1,9 141 45 12 4143486 VDS403A11200 11,200 .4409 79 94 1,9 141 45 12 4143487 VDS403A11300 11,300 .4449 79 94 1,9 141 45 12 4143488 VDS403A11400 11,400 .4488 79 94 2,0 141 45 12 4143489 VDS403A11500 11,500 .4528 79 94 2,0 141 45 12 4143490 VDS403A11509 11,509 .4531 79 94 2,0 141 45 12 4143491 VDS403A11600 11,600 .4567 79 94 2,0 141 45 12 4143492 VDS403A11700 11,700 .4606 79 94 2,0 141 45 12 4143493 VDS403A11800 11,800 .4646 79 94 2,0 141 45 12 4143494 VDS403A11900 11,900 .4685 79 94 2,0 141 45 12 4143495 VDS403A11908 11,908 .4688 79 94 2,0 141 45 12 4143496 VDS403A12000 12,000 .4724 79 94 2,1 141 45 12 4143497 VDS403A12100 12,100 .4764 91 108 2,1 155 45 14 4143498 VDS403A12200 12,200 .4803 91 108 2,1 155 45 14 4143499 VDS403A12300 12,300 .4843 91 108 2,1 155 45 14 4143500 VDS403A12304 12,304 .4844 91 108 2,1 155 45 14 4143501 VDS403A12400 12,400 .4882 91 108 2,1 155 45 14 4143502 VDS403A12500 12,500 .4921 91 108 2,1 155 45 14 4143503 VDS403A12600 12,600 .4961 91 108 2,2 155 45 14 4143504 VDS403A12700 12,700 .5000 91 108 2,2 155 45 14 4143505 VDS403A12800 12,800 .5039 91 108 2,2 155 45 14 4143506 VDS403A12900 12,900 .5079 91 108 2,2 155 45 14 4143507 VDS403A13000 13,000 .5118 91 108 2,2 155 45 14 4143508 VDS403A13096 13,096 .5156 91 108 2,3 155 45 14 4143509 VDS403A13100 13,100 .5157 91 108 2,3 155 45 14 4143510 VDS403A13200 13,200 .5197 91 108 2,3 155 45 14 4143511 VDS403A13300 13,300 .5236 91 108 2,3 155 45 14 4143512 VDS403A13400 13,400 .5276 91 108 2,3 155 45 14 4143513 VDS403A13500 13,500 .5315 91 108 2,3 155 45 14 4143514 VDS403A13600 13,600 .5354 91 108 2,3 155 45 14 4143515 VDS403A13700 13,700 .5394 91 108 2,4 155 45 14 4143516 VDS403A13800 13,800 .5433 91 108 2,4 155 45 14 (continued) T26 widia.com Solid Carbide Drills
