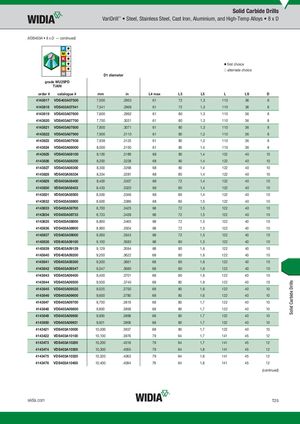

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4143817 VDS403A07500 7,500 .2953 61 72 1,3 110 36 8 4143818 VDS403A07541 7,541 .2969 61 72 1,3 110 36 8 4143819 VDS403A07600 7,600 .2992 61 80 1,3 110 36 8 4143820 VDS403A07700 7,700 .3031 61 80 1,3 110 36 8 4143821 VDS403A07800 7,800 .3071 61 80 1,3 110 36 8 4143822 VDS403A07900 7,900 .3110 61 80 1,3 110 36 8 4143823 VDS403A07938 7,938 .3125 61 80 1,3 110 36 8 4143824 VDS403A08000 8,000 .3150 61 80 1,4 110 36 8 4143825 VDS403A08100 8,100 .3189 68 80 1,4 122 40 10 4143826 VDS403A08200 8,200 .3228 68 80 1,4 122 40 10 4143827 VDS403A08300 8,300 .3268 68 80 1,4 122 40 10 4143828 VDS403A08334 8,334 .3281 68 80 1,4 122 40 10 4143829 VDS403A08400 8,400 .3307 68 72 1,4 122 40 10 4143830 VDS403A08433 8,433 .3320 68 80 1,4 122 40 10 4143831 VDS403A08500 8,500 .3346 68 80 1,4 122 40 10 4143832 VDS403A08600 8,600 .3386 68 80 1,5 122 40 10 4143833 VDS403A08700 8,700 .3425 68 72 1,5 122 40 10 4143834 VDS403A08733 8,733 .3438 68 72 1,5 122 40 10 4143835 VDS403A08800 8,800 .3465 68 72 1,5 122 40 10 4143836 VDS403A08900 8,900 .3504 68 72 1,5 122 40 10 4143837 VDS403A09000 9,000 .3543 68 72 1,5 122 40 10 4143838 VDS403A09100 9,100 .3583 68 80 1,5 122 40 10 4143839 VDS403A09129 9,129 .3594 68 80 1,6 122 40 10 4143840 VDS403A09200 9,200 .3622 68 80 1,6 122 40 10 4143841 VDS403A09300 9,300 .3661 68 80 1,6 122 40 10 4143842 VDS403A09347 9,347 .3680 68 80 1,6 122 40 10 4143843 VDS403A09400 9,400 .3701 68 80 1,6 122 40 10 4143844 VDS403A09500 9,500 .3740 68 80 1,6 122 40 10 4143845 VDS403A09525 9,525 .3750 68 80 1,6 122 40 10 4143846 VDS403A09600 9,600 .3780 68 80 1,6 122 40 10 4143847 VDS403A09700 9,700 .3819 68 80 1,7 122 40 10 4143848 VDS403A09800 9,800 .3858 68 80 1,7 122 40 10 4143849 VDS403A09900 9,900 .3898 68 80 1,7 122 40 10 4143850 VDS403A09921 9,921 .3906 68 80 1,7 122 40 10 4143421 VDS403A10000 10,000 .3937 68 80 1,7 122 40 10 4143422 VDS403A10100 10,100 .3976 79 94 1,7 141 45 12 4143473 VDS403A10200 10,200 .4016 79 94 1,7 141 45 12 4143474 VDS403A10300 10,300 .4055 79 94 1,8 141 45 12 4143475 VDS403A10320 10,320 .4063 79 94 1,8 141 45 12 4143476 VDS403A10400 10,400 .4094 79 94 1,8 141 45 12 (continued) widia.com T25 Solid Carbide Drills
