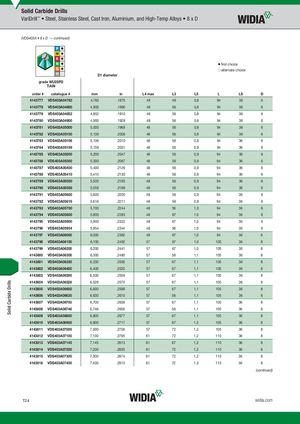

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4143777 VDS403A04763 4,763 .1875 48 49 0,8 94 36 6 4143778 VDS403A04800 4,800 .1890 48 56 0,8 94 36 6 4143779 VDS403A04852 4,852 .1910 48 56 0,8 94 36 6 4143780 VDS403A04900 4,900 .1929 48 56 0,8 94 36 6 4143781 VDS403A05000 5,000 .1969 48 56 0,8 94 36 6 4143782 VDS403A05100 5,100 .2008 48 56 0,8 94 36 6 4143783 VDS403A05106 5,106 .2010 48 56 0,8 94 36 6 4143784 VDS403A05159 5,159 .2031 48 56 0,9 94 36 6 4143785 VDS403A05200 5,200 .2047 48 56 0,9 94 36 6 4143786 VDS403A05300 5,300 .2087 48 56 0,9 94 36 6 4143787 VDS403A05400 5,400 .2126 48 56 0,9 94 36 6 4143788 VDS403A05410 5,410 .2130 48 56 0,9 94 36 6 4143789 VDS403A05500 5,500 .2165 48 56 0,9 94 36 6 4143790 VDS403A05558 5,558 .2188 48 56 0,9 94 36 6 4143791 VDS403A05600 5,600 .2205 48 56 0,9 94 36 6 4143792 VDS403A05616 5,616 .2211 48 56 0,9 94 36 6 4143793 VDS403A05700 5,700 .2244 48 56 1,0 94 36 6 4143794 VDS403A05800 5,800 .2283 48 67 1,0 94 36 6 4143795 VDS403A05900 5,900 .2323 48 67 1,0 94 36 6 4143796 VDS403A05954 5,954 .2344 48 56 1,0 94 36 6 4143797 VDS403A06000 6,000 .2362 48 67 1,0 94 36 6 4143798 VDS403A06100 6,100 .2402 57 67 1,0 105 36 8 4143799 VDS403A06200 6,200 .2441 57 67 1,0 105 36 8 4143800 VDS403A06300 6,300 .2480 57 56 1,1 105 36 8 4143801 VDS403A06350 6,350 .2500 57 67 1,1 105 36 8 4143802 VDS403A06400 6,400 .2520 57 67 1,1 105 36 8 4143803 VDS403A06500 6,500 .2559 57 67 1,1 105 36 8 4143804 VDS403A06528 6,528 .2570 57 67 1,1 105 36 8 4143805 VDS403A06600 6,600 .2598 57 67 1,1 105 36 8 4143806 VDS403A06630 6,630 .2610 57 56 1,1 105 36 8 4143807 VDS403A06700 6,700 .2638 57 67 1,1 105 36 8 4143808 VDS403A06746 6,746 .2656 57 56 1,1 105 36 8 4143809 VDS403A06800 6,800 .2677 57 67 1,1 105 36 8 4143810 VDS403A06900 6,900 .2717 57 67 1,2 105 36 8 4143811 VDS403A07000 7,000 .2756 57 72 1,2 105 36 8 4143812 VDS403A07100 7,100 .2795 61 72 1,2 110 36 8 4143813 VDS403A07145 7,145 .2813 61 67 1,2 110 36 8 4143814 VDS403A07200 7,200 .2835 61 72 1,2 110 36 8 4143815 VDS403A07300 7,300 .2874 61 72 1,2 110 36 8 4143816 VDS403A07400 7,400 .2913 61 72 1,3 110 36 8 (continued) T24 widia.com Solid Carbide Drills
