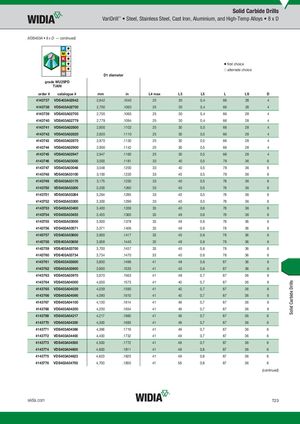

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4143737 VDS403A02642 2,642 .1040 25 30 0,4 66 28 4 4143738 VDS403A02700 2,700 .1063 25 30 0,4 66 28 4 4143739 VDS403A02705 2,705 .1065 25 30 0,4 66 28 4 4143740 VDS403A02779 2,779 .1094 25 30 0,4 66 28 4 4143741 VDS403A02800 2,800 .1102 25 30 0,5 66 28 4 4143742 VDS403A02820 2,820 .1110 25 30 0,5 66 28 4 4143743 VDS403A02870 2,870 .1130 25 30 0,5 66 28 4 4143744 VDS403A02900 2,900 .1142 25 30 0,5 66 28 4 4143745 VDS403A02947 2,947 .1160 25 30 0,5 66 28 4 4143746 VDS403A03000 3,000 .1181 33 40 0,5 78 36 6 4143747 VDS403A03048 3,048 .1200 33 40 0,5 78 36 6 4143748 VDS403A03100 3,100 .1220 33 40 0,5 78 36 6 4143749 VDS403A03175 3,175 .1250 33 40 0,5 78 36 6 4143750 VDS403A03200 3,200 .1260 33 40 0,5 78 36 6 4143751 VDS403A03264 3,264 .1285 33 40 0,5 78 36 6 4143752 VDS403A03300 3,300 .1299 33 40 0,5 78 36 6 4143753 VDS403A03400 3,400 .1339 33 40 0,6 78 36 6 4143754 VDS403A03455 3,455 .1360 33 49 0,6 78 36 6 4143755 VDS403A03500 3,500 .1378 33 49 0,6 78 36 6 4143756 VDS403A03571 3,571 .1406 33 49 0,6 78 36 6 4143757 VDS403A03600 3,600 .1417 33 40 0,6 78 36 6 4143758 VDS403A03658 3,658 .1440 33 49 0,6 78 36 6 4143759 VDS403A03700 3,700 .1457 33 40 0,6 78 36 6 4143760 VDS403A03734 3,734 .1470 33 40 0,6 78 36 6 4143761 VDS403A03800 3,800 .1496 41 49 0,6 87 36 6 4143762 VDS403A03900 3,900 .1535 41 40 0,6 87 36 6 4143763 VDS403A03970 3,970 .1563 41 49 0,7 87 36 6 4143764 VDS403A04000 4,000 .1575 41 40 0,7 87 36 6 4143765 VDS403A04039 4,039 .1590 41 40 0,7 87 36 6 4143766 VDS403A04090 4,090 .1610 41 40 0,7 87 36 6 4143767 VDS403A04100 4,100 .1614 41 49 0,7 87 36 6 4143768 VDS403A04200 4,200 .1654 41 49 0,7 87 36 6 4143769 VDS403A04217 4,217 .1660 41 49 0,7 87 36 6 4143770 VDS403A04300 4,300 .1693 41 49 0,7 87 36 6 4143771 VDS403A04366 4,366 .1719 41 49 0,7 87 36 6 4143772 VDS403A04400 4,400 .1732 41 49 0,7 87 36 6 4143773 VDS403A04500 4,500 .1772 41 49 0,7 87 36 6 4143774 VDS403A04600 4,600 .1811 41 49 0,8 87 36 6 4143775 VDS403A04623 4,623 .1820 41 49 0,8 87 36 6 4143776 VDS403A04700 4,700 .1850 41 56 0,8 87 36 6 (continued) widia.com T23 Solid Carbide Drills
