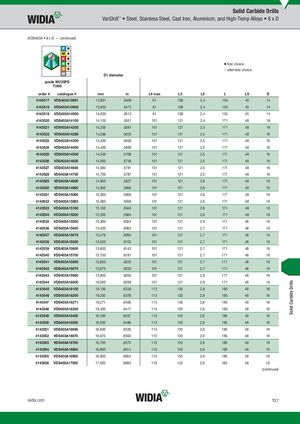

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4143517 VDS403A13891 13,891 .5469 91 108 2,4 155 45 14 4143518 VDS403A13900 13,900 .5472 91 108 2,4 155 45 14 4143519 VDS403A14000 14,000 .5512 91 108 2,4 155 45 14 4143520 VDS403A14100 14,100 .5551 101 121 2,4 171 48 16 4143521 VDS403A14200 14,200 .5591 101 121 2,5 171 48 16 4143522 VDS403A14288 14,288 .5625 101 121 2,5 171 48 16 4143523 VDS403A14300 14,300 .5630 101 121 2,5 171 48 16 4143524 VDS403A14400 14,400 .5669 101 121 2,5 171 48 16 4143525 VDS403A14500 14,500 .5709 101 121 2,5 171 48 16 4143526 VDS403A14600 14,600 .5748 101 121 2,5 171 48 16 4143527 VDS403A14684 14,684 .5781 101 121 2,5 171 48 16 4143528 VDS403A14700 14,700 .5787 101 121 2,5 171 48 16 4143529 VDS403A14800 14,800 .5827 101 121 2,6 171 48 16 4143530 VDS403A14900 14,900 .5866 101 121 2,6 171 48 16 4143531 VDS403A15000 15,000 .5906 101 121 2,6 171 48 16 4143532 VDS403A15083 15,083 .5938 101 121 2,6 171 48 16 4143533 VDS403A15100 15,100 .5945 101 121 2,6 171 48 16 4143534 VDS403A15200 15,200 .5984 101 121 2,6 171 48 16 4143535 VDS403A15300 15,300 .6024 101 121 2,6 171 48 16 4143536 VDS403A15400 15,400 .6063 101 121 2,7 171 48 16 4143537 VDS403A15479 15,479 .6094 101 121 2,7 171 48 16 4143538 VDS403A15500 15,500 .6102 101 121 2,7 171 48 16 4143539 VDS403A15600 15,600 .6142 101 121 2,7 171 48 16 4143540 VDS403A15700 15,700 .6181 101 121 2,7 171 48 16 4143541 VDS403A15800 15,800 .6220 101 121 2,7 171 48 16 4143542 VDS403A15875 15,875 .6250 101 121 2,7 171 48 16 4143543 VDS403A15900 15,900 .6260 101 121 2,8 171 48 16 4143544 VDS403A16000 16,000 .6299 101 121 2,8 171 48 16 4143545 VDS403A16100 16,100 .6339 113 135 2,8 185 48 18 4143546 VDS403A16200 16,200 .6378 113 135 2,8 185 48 18 4143547 VDS403A16271 16,271 .6406 113 135 2,8 185 48 18 4143548 VDS403A16300 16,300 .6417 113 135 2,8 185 48 18 4143549 VDS403A16400 16,400 .6457 113 135 2,8 185 48 18 4143550 VDS403A16500 16,500 .6496 113 135 2,9 185 48 18 4143551 VDS403A16600 16,600 .6535 113 135 2,9 185 48 18 4143552 VDS403A16670 16,670 .6563 113 135 2,9 185 48 18 4143553 VDS403A16700 16,700 .6575 113 135 2,9 185 48 18 4143554 VDS403A16800 16,800 .6614 113 135 2,9 185 48 18 4143555 VDS403A16900 16,900 .6654 113 135 2,9 185 48 18 4143556 VDS403A17000 17,000 .6693 113 135 2,9 185 48 18 (continued) widia.com T27 Solid Carbide Drills
