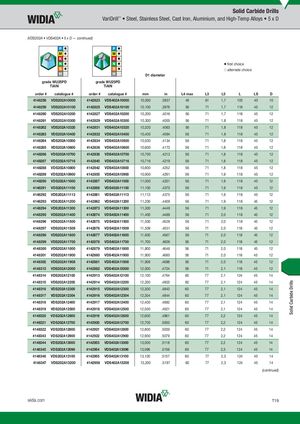

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202A • VDS402A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eAW•UW2U5P25DPD VDgSr4a0d2eAW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148258 VDS202A10000 4142823 VDS402A10000 10,000 .3937 49 61 1,7 103 40 10 4148259 VDS202A10100 4142825 VDS402A10100 10,100 .3976 56 71 1,7 118 45 12 4148260 VDS202A10200 4142827 VDS402A10200 10,200 .4016 56 71 1,7 118 45 12 4148261 VDS202A10300 4142829 VDS402A10300 10,300 .4055 56 71 1,8 118 45 12 4148262 VDS202A10320 4142831 VDS402A10320 10,320 .4063 56 71 1,8 118 45 12 4148283 VDS202A10400 4142832 VDS402A10400 10,400 .4094 56 71 1,8 118 45 12 4148284 VDS202A10500 4142834 VDS402A10500 10,500 .4134 56 71 1,8 118 45 12 4148285 VDS202A10600 4142836 VDS402A10600 10,600 .4173 56 71 1,8 118 45 12 4148286 VDS202A10700 4142838 VDS402A10700 10,700 .4213 56 71 1,8 118 45 12 4148287 VDS202A10716 4142840 VDS402A10716 10,716 .4219 56 71 1,8 118 45 12 4148288 VDS202A10800 4142842 VDS402A10800 10,800 .4252 56 71 1,8 118 45 12 4148289 VDS202A10900 4142855 VDS402A10900 10,900 .4291 56 71 1,9 118 45 12 4148290 VDS202A11000 4142857 VDS402A11000 11,000 .4331 56 71 1,9 118 45 12 4148291 VDS202A11100 4142858 VDS402A11100 11,100 .4370 56 71 1,9 118 45 12 4148292 VDS202A11113 4142861 VDS402A11113 11,113 .4375 56 71 1,9 118 45 12 4148293 VDS202A11200 4142862 VDS402A11200 11,200 .4409 56 71 1,9 118 45 12 4148294 VDS202A11300 4142873 VDS402A11300 11,300 .4449 56 71 1,9 118 45 12 4148295 VDS202A11400 4142874 VDS402A11400 11,400 .4488 56 71 2,0 118 45 12 4148296 VDS202A11500 4142875 VDS402A11500 11,500 .4528 56 71 2,0 118 45 12 4148297 VDS202A11509 4142876 VDS402A11509 11,509 .4531 56 71 2,0 118 45 12 4148298 VDS202A11600 4142877 VDS402A11600 11,600 .4567 56 71 2,0 118 45 12 4148299 VDS202A11700 4142878 VDS402A11700 11,700 .4606 56 71 2,0 118 45 12 4148300 VDS202A11800 4142879 VDS402A11800 11,800 .4646 56 71 2,0 118 45 12 4148301 VDS202A11900 4142880 VDS402A11900 11,900 .4685 56 71 2,0 118 45 12 4148302 VDS202A11908 4142881 VDS402A11908 11,908 .4688 56 71 2,0 118 45 12 4148313 VDS202A12000 4142882 VDS402A12000 12,000 .4724 56 71 2,1 118 45 12 4148314 VDS202A12100 4142913 VDS402A12100 12,100 .4764 60 77 2,1 124 45 14 4148315 VDS202A12200 4142914 VDS402A12200 12,200 .4803 60 77 2,1 124 45 14 4148316 VDS202A12300 4142915 VDS402A12300 12,300 .4843 60 77 2,1 124 45 14 4148317 VDS202A12304 4142916 VDS402A12304 12,304 .4844 60 77 2,1 124 45 14 4148318 VDS202A12400 4142917 VDS402A12400 12,400 .4882 60 77 2,1 124 45 14 4148319 VDS202A12500 4142918 VDS402A12500 12,500 .4921 60 77 2,1 124 45 14 4148320 VDS202A12600 4142919 VDS402A12600 12,600 .4961 60 77 2,2 124 45 14 4148321 VDS202A12700 4142920 VDS402A12700 12,700 .5000 60 77 2,2 124 45 14 4148322 VDS202A12800 4142921 VDS402A12800 12,800 .5039 60 77 2,2 124 45 14 4148343 VDS202A12900 4142922 VDS402A12900 12,900 .5079 60 77 2,2 124 45 14 4148344 VDS202A13000 4142953 VDS402A13000 13,000 .5118 60 77 2,2 124 45 14 4148345 VDS202A13096 4142954 VDS402A13096 13,096 .5156 60 77 2,3 124 45 14 4148346 VDS202A13100 4142955 VDS402A13100 13,100 .5157 60 77 2,3 124 45 14 4148347 VDS202A13200 4142956 VDS402A13200 13,200 .5197 60 77 2,3 124 45 14 (continued) widia.com T19 Solid Carbide Drills
