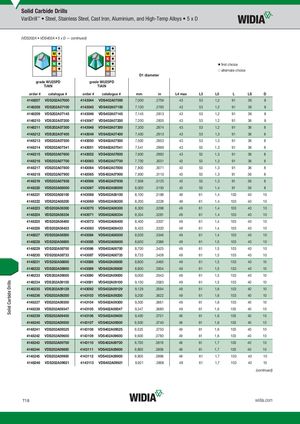

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202A • VDS402A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eAW•UW2U5P25DPD VDgSr4a0d2eAW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148207 VDS202A07000 4143044 VDS402A07000 7,000 .2756 43 53 1,2 91 36 8 4148208 VDS202A07100 4143045 VDS402A07100 7,100 .2795 43 53 1,2 91 36 8 4148209 VDS202A07145 4143046 VDS402A07145 7,145 .2813 43 53 1,2 91 36 8 4148210 VDS202A07200 4143047 VDS402A07200 7,200 .2835 43 53 1,2 91 36 8 4148211 VDS202A07300 4143048 VDS402A07300 7,300 .2874 43 53 1,2 91 36 8 4148212 VDS202A07400 4143049 VDS402A07400 7,400 .2913 43 53 1,3 91 36 8 4148213 VDS202A07500 4143050 VDS402A07500 7,500 .2953 43 53 1,3 91 36 8 4148214 VDS202A07541 4143051 VDS402A07541 7,541 .2969 43 53 1,3 91 36 8 4148215 VDS202A07600 4143052 VDS402A07600 7,600 .2992 43 53 1,3 91 36 8 4148216 VDS202A07700 4143063 VDS402A07700 7,700 .3031 43 53 1,3 91 36 8 4148217 VDS202A07800 4143064 VDS402A07800 7,800 .3071 43 53 1,3 91 36 8 4148218 VDS202A07900 4143065 VDS402A07900 7,900 .3110 43 53 1,3 91 36 8 4148219 VDS202A07938 4143066 VDS402A07938 7,938 .3125 43 53 1,3 91 36 8 4148220 VDS202A08000 4143067 VDS402A08000 8,000 .3150 43 53 1,4 91 36 8 4148221 VDS202A08100 4143068 VDS402A08100 8,100 .3189 49 61 1,4 103 40 10 4148222 VDS202A08200 4143069 VDS402A08200 8,200 .3228 49 61 1,4 103 40 10 4148223 VDS202A08300 4143070 VDS402A08300 8,300 .3268 49 61 1,4 103 40 10 4148224 VDS202A08334 4143071 VDS402A08334 8,334 .3281 49 61 1,4 103 40 10 4148225 VDS202A08400 4143072 VDS402A08400 8,400 .3307 49 61 1,4 103 40 10 4148226 VDS202A08433 4143083 VDS402A08433 8,433 .3320 49 61 1,4 103 40 10 4148227 VDS202A08500 4143084 VDS402A08500 8,500 .3346 49 61 1,4 103 40 10 4148228 VDS202A08600 4143085 VDS402A08600 8,600 .3386 49 61 1,5 103 40 10 4148229 VDS202A08700 4143086 VDS402A08700 8,700 .3425 49 61 1,5 103 40 10 4148230 VDS202A08733 4143087 VDS402A08733 8,733 .3438 49 61 1,5 103 40 10 4148231 VDS202A08800 4143088 VDS402A08800 8,800 .3465 49 61 1,5 103 40 10 4148232 VDS202A08900 4143089 VDS402A08900 8,900 .3504 49 61 1,5 103 40 10 4148233 VDS202A09000 4143090 VDS402A09000 9,000 .3543 49 61 1,5 103 40 10 4148234 VDS202A09100 4143091 VDS402A09100 9,100 .3583 49 61 1,5 103 40 10 4148235 VDS202A09129 4143092 VDS402A09129 9,129 .3594 49 61 1,6 103 40 10 4148236 VDS202A09200 4143103 VDS402A09200 9,200 .3622 49 61 1,6 103 40 10 4148237 VDS202A09300 4143104 VDS402A09300 9,300 .3661 49 61 1,6 103 40 10 4148238 VDS202A09347 4143105 VDS402A09347 9,347 .3680 49 61 1,6 103 40 10 4148239 VDS202A09400 4143106 VDS402A09400 9,400 .3701 49 61 1,6 103 40 10 4148240 VDS202A09500 4143107 VDS402A09500 9,500 .3740 49 61 1,6 103 40 10 4148241 VDS202A09525 4143108 VDS402A09525 9,525 .3750 49 61 1,6 103 40 10 4148242 VDS202A09600 4143109 VDS402A09600 9,600 .3780 49 61 1,6 103 40 10 4148243 VDS202A09700 4143110 VDS402A09700 9,700 .3819 49 61 1,7 103 40 10 4148244 VDS202A09800 4143111 VDS402A09800 9,800 .3858 49 61 1,7 103 40 10 4148245 VDS202A09900 4143112 VDS402A09900 9,900 .3898 49 61 1,7 103 40 10 4148246 VDS202A09921 4143113 VDS402A09921 9,921 .3906 49 61 1,7 103 40 10 (continued) T18 widia.com Solid Carbide Drills
