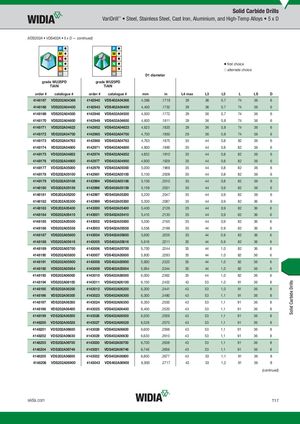

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202A • VDS402A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eAW•UW2U5P25DPD VDgSr4a0d2eAW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148167 VDS202A04366 4142940 VDS402A04366 4,366 .1719 29 36 0,7 74 36 6 4148168 VDS202A04400 4142943 VDS402A04400 4,400 .1732 29 36 0,7 74 36 6 4148169 VDS202A04500 4142946 VDS402A04500 4,500 .1772 29 36 0,7 74 36 6 4148170 VDS202A04600 4142949 VDS402A04600 4,600 .1811 29 36 0,8 74 36 6 4148171 VDS202A04623 4142952 VDS402A04623 4,623 .1820 29 36 0,8 74 36 6 4148172 VDS202A04700 4142965 VDS402A04700 4,700 .1850 29 36 0,8 74 36 6 4148173 VDS202A04763 4142968 VDS402A04763 4,763 .1875 35 44 0,8 82 36 6 4148174 VDS202A04800 4142971 VDS402A04800 4,800 .1890 35 44 0,8 82 36 6 4148175 VDS202A04852 4142974 VDS402A04852 4,852 .1910 35 44 0,8 82 36 6 4148176 VDS202A04900 4142977 VDS402A04900 4,900 .1929 35 44 0,8 82 36 6 4148177 VDS202A05000 4142979 VDS402A05000 5,000 .1969 35 44 0,8 82 36 6 4148178 VDS202A05100 4142981 VDS402A05100 5,100 .2008 35 44 0,8 82 36 6 4148179 VDS202A05106 4142994 VDS402A05106 5,106 .2010 35 44 0,8 82 36 6 4148180 VDS202A05159 4142996 VDS402A05159 5,159 .2031 35 44 0,9 82 36 6 4148181 VDS202A05200 4142997 VDS402A05200 5,200 .2047 35 44 0,9 82 36 6 4148182 VDS202A05300 4142999 VDS402A05300 5,300 .2087 35 44 0,9 82 36 6 4148183 VDS202A05400 4143000 VDS402A05400 5,400 .2126 35 44 0,9 82 36 6 4148184 VDS202A05410 4143001 VDS402A05410 5,410 .2130 35 44 0,9 82 36 6 4148185 VDS202A05500 4143002 VDS402A05500 5,500 .2165 35 44 0,9 82 36 6 4148186 VDS202A05558 4143003 VDS402A05558 5,558 .2188 35 44 0,9 82 36 6 4148187 VDS202A05600 4143004 VDS402A05600 5,600 .2205 35 44 0,9 82 36 6 4148188 VDS202A05616 4143005 VDS402A05616 5,616 .2211 35 44 0,9 82 36 6 4148189 VDS202A05700 4143006 VDS402A05700 5,700 .2244 35 44 1,0 82 36 6 4148190 VDS202A05800 4143007 VDS402A05800 5,800 .2283 35 44 1,0 82 36 6 4148191 VDS202A05900 4143008 VDS402A05900 5,900 .2323 35 44 1,0 82 36 6 4148192 VDS202A05954 4143009 VDS402A05954 5,954 .2344 35 44 1,0 82 36 6 4148193 VDS202A06000 4143010 VDS402A06000 6,000 .2362 35 44 1,0 82 36 6 4148194 VDS202A06100 4143011 VDS402A06100 6,100 .2402 43 53 1,0 91 36 8 4148195 VDS202A06200 4143012 VDS402A06200 6,200 .2441 43 53 1,0 91 36 8 4148196 VDS202A06300 4143023 VDS402A06300 6,300 .2480 43 53 1,1 91 36 8 4148197 VDS202A06350 4143024 VDS402A06350 6,350 .2500 43 53 1,1 91 36 8 4148198 VDS202A06400 4143025 VDS402A06400 6,400 .2520 43 53 1,1 91 36 8 4148199 VDS202A06500 4143026 VDS402A06500 6,500 .2559 43 53 1,1 91 36 8 4148200 VDS202A06528 4143027 VDS402A06528 6,528 .2570 43 53 1,1 91 36 8 4148201 VDS202A06600 4143028 VDS402A06600 6,600 .2598 43 53 1,1 91 36 8 4148202 VDS202A06630 4143029 VDS402A06630 6,630 .2610 43 53 1,1 91 36 8 4148203 VDS202A06700 4143030 VDS402A06700 6,700 .2638 43 53 1,1 91 36 8 4148204 VDS202A06746 4143031 VDS402A06746 6,746 .2656 43 53 1,1 91 36 8 4148205 VDS202A06800 4143032 VDS402A06800 6,800 .2677 43 53 1,1 91 36 8 4148206 VDS202A06900 4143043 VDS402A06900 6,900 .2717 43 53 1,2 91 36 8 (continued) widia.com T17 Solid Carbide Drills
