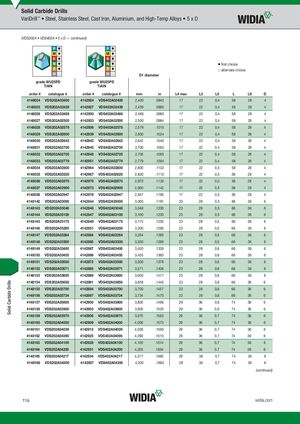

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202A • VDS402A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eAW•UW2U5P25DPD VDgSr4a0d2eAW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148024 VDS202A02400 4142924 VDS402A02400 2,400 .0945 17 22 0,4 58 28 4 4148025 VDS202A02439 4142927 VDS402A02439 2,439 .0960 17 22 0,4 58 28 4 4148026 VDS202A02489 4142930 VDS402A02489 2,489 .0980 17 22 0,4 58 28 4 4148027 VDS202A02500 4142933 VDS402A02500 2,500 .0984 17 22 0,4 58 28 4 4148028 VDS202A02578 4142936 VDS402A02578 2,578 .1015 17 22 0,4 58 28 4 4148029 VDS202A02600 4142939 VDS402A02600 2,600 .1024 17 22 0,4 58 28 4 4148030 VDS202A02642 4142942 VDS402A02642 2,642 .1040 17 22 0,4 58 28 4 4148031 VDS202A02700 4142945 VDS402A02700 2,700 .1063 17 22 0,4 58 28 4 4148032 VDS202A02705 4142948 VDS402A02705 2,705 .1065 17 22 0,4 58 28 4 4148033 VDS202A02779 4142951 VDS402A02779 2,779 .1094 17 22 0,4 58 28 4 4148034 VDS202A02800 4142964 VDS402A02800 2,800 .1102 17 22 0,5 58 28 4 4148035 VDS202A02820 4142967 VDS402A02820 2,820 .1110 17 22 0,5 58 28 4 4148036 VDS202A02870 4142970 VDS402A02870 2,870 .1130 17 22 0,5 58 28 4 4148037 VDS202A02900 4142973 VDS402A02900 2,900 .1142 17 22 0,5 58 28 4 4148038 VDS202A02947 4142976 VDS402A02947 2,947 .1160 17 22 0,5 58 28 4 4148142 VDS202A03000 4142844 VDS402A03000 3,000 .1181 23 28 0,5 66 36 6 4148143 VDS202A03048 4142846 VDS402A03048 3,048 .1200 23 28 0,5 66 36 6 4148144 VDS202A03100 4142847 VDS402A03100 3,100 .1220 23 28 0,5 66 36 6 4148145 VDS202A03175 4142849 VDS402A03175 3,175 .1250 23 28 0,5 66 36 6 4148146 VDS202A03200 4142851 VDS402A03200 3,200 .1260 23 28 0,5 66 36 6 4148147 VDS202A03264 4142864 VDS402A03264 3,264 .1285 23 28 0,5 66 36 6 4148148 VDS202A03300 4142865 VDS402A03300 3,300 .1299 23 28 0,5 66 36 6 4148149 VDS202A03400 4142867 VDS402A03400 3,400 .1339 23 28 0,6 66 36 6 4148150 VDS202A03455 4142869 VDS402A03455 3,455 .1360 23 28 0,6 66 36 6 4148151 VDS202A03500 4142872 VDS402A03500 3,500 .1378 23 28 0,6 66 36 6 4148152 VDS202A03571 4142885 VDS402A03571 3,571 .1406 23 28 0,6 66 36 6 4148153 VDS202A03600 4142888 VDS402A03600 3,600 .1417 23 28 0,6 66 36 6 4148154 VDS202A03658 4142891 VDS402A03658 3,658 .1440 23 28 0,6 66 36 6 4148155 VDS202A03700 4142894 VDS402A03700 3,700 .1457 23 28 0,6 66 36 6 4148156 VDS202A03734 4142897 VDS402A03734 3,734 .1470 23 28 0,6 66 36 6 4148157 VDS202A03800 4142900 VDS402A03800 3,800 .1496 29 36 0,6 74 36 6 4148158 VDS202A03900 4142903 VDS402A03900 3,900 .1535 29 36 0,6 74 36 6 4148159 VDS202A03970 4142906 VDS402A03970 3,970 .1563 29 36 0,7 74 36 6 4148160 VDS202A04000 4142909 VDS402A04000 4,000 .1575 29 36 0,7 74 36 6 4148161 VDS202A04039 4142912 VDS402A04039 4,039 .1590 29 36 0,7 74 36 6 4148162 VDS202A04090 4142925 VDS402A04090 4,090 .1610 29 36 0,7 74 36 6 4148163 VDS202A04100 4142928 VDS402A04100 4,100 .1614 29 36 0,7 74 36 6 4148164 VDS202A04200 4142931 VDS402A04200 4,200 .1654 29 36 0,7 74 36 6 4148165 VDS202A04217 4142934 VDS402A04217 4,217 .1660 29 36 0,7 74 36 6 4148166 VDS202A04300 4142937 VDS402A04300 4,300 .1693 29 36 0,7 74 36 6 (continued) T16 widia.com Solid Carbide Drills
