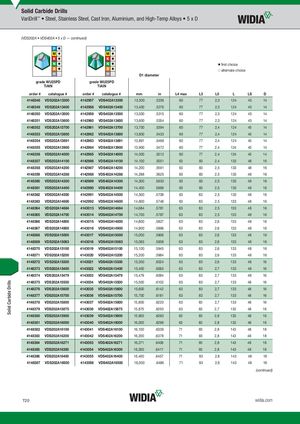

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202A • VDS402A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eAW•UW2U5P25DPD VDgSr4a0d2eAW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148348 VDS202A13300 4142957 VDS402A13300 13,300 .5236 60 77 2,3 124 45 14 4148349 VDS202A13400 4142958 VDS402A13400 13,400 .5276 60 77 2,3 124 45 14 4148350 VDS202A13500 4142959 VDS402A13500 13,500 .5315 60 77 2,3 124 45 14 4148351 VDS202A13600 4142960 VDS402A13600 13,600 .5354 60 77 2,3 124 45 14 4148352 VDS202A13700 4142961 VDS402A13700 13,700 .5394 60 77 2,4 124 45 14 4148353 VDS202A13800 4142962 VDS402A13800 13,800 .5433 60 77 2,4 124 45 14 4148354 VDS202A13891 4142983 VDS402A13891 13,891 .5469 60 77 2,4 124 45 14 4148355 VDS202A13900 4142984 VDS402A13900 13,900 .5472 60 77 2,4 124 45 14 4148356 VDS202A14000 4142985 VDS402A14000 14,000 .5512 60 77 2,4 124 45 14 4148357 VDS202A14100 4142986 VDS402A14100 14,100 .5551 63 83 2,4 133 48 16 4148358 VDS202A14200 4142987 VDS402A14200 14,200 .5591 63 83 2,5 133 48 16 4148359 VDS202A14288 4142988 VDS402A14288 14,288 .5625 63 83 2,5 133 48 16 4148360 VDS202A14300 4142989 VDS402A14300 14,300 .5630 63 83 2,5 133 48 16 4148361 VDS202A14400 4142990 VDS402A14400 14,400 .5669 63 83 2,5 133 48 16 4148362 VDS202A14500 4142991 VDS402A14500 14,500 .5709 63 83 2,5 133 48 16 4148363 VDS202A14600 4142992 VDS402A14600 14,600 .5748 63 83 2,5 133 48 16 4148364 VDS202A14684 4143013 VDS402A14684 14,684 .5781 63 83 2,5 133 48 16 4148365 VDS202A14700 4143014 VDS402A14700 14,700 .5787 63 83 2,5 133 48 16 4148366 VDS202A14800 4143015 VDS402A14800 14,800 .5827 63 83 2,6 133 48 16 4148367 VDS202A14900 4143016 VDS402A14900 14,900 .5866 63 83 2,6 133 48 16 4148368 VDS202A15000 4143017 VDS402A15000 15,000 .5906 63 83 2,6 133 48 16 4148369 VDS202A15083 4143018 VDS402A15083 15,083 .5938 63 83 2,6 133 48 16 4148370 VDS202A15100 4143019 VDS402A15100 15,100 .5945 63 83 2,6 133 48 16 4148371 VDS202A15200 4143020 VDS402A15200 15,200 .5984 63 83 2,6 133 48 16 4148372 VDS202A15300 4143021 VDS402A15300 15,300 .6024 63 83 2,6 133 48 16 4148373 VDS202A15400 4143022 VDS402A15400 15,400 .6063 63 83 2,7 133 48 16 4148374 VDS202A15479 4143033 VDS402A15479 15,479 .6094 63 83 2,7 133 48 16 4148375 VDS202A15500 4143034 VDS402A15500 15,500 .6102 63 83 2,7 133 48 16 4148376 VDS202A15600 4143035 VDS402A15600 15,600 .6142 63 83 2,7 133 48 16 4148377 VDS202A15700 4143036 VDS402A15700 15,700 .6181 63 83 2,7 133 48 16 4148378 VDS202A15800 4143037 VDS402A15800 15,800 .6220 63 83 2,7 133 48 16 4148379 VDS202A15875 4143038 VDS402A15875 15,875 .6250 63 83 2,7 133 48 16 4148380 VDS202A15900 4143039 VDS402A15900 15,900 .6260 63 83 2,8 133 48 16 4148381 VDS202A16000 4143040 VDS402A16000 16,000 .6299 63 83 2,8 133 48 16 4148382 VDS202A16100 4143041 VDS402A16100 16,100 .6339 71 93 2,8 143 48 18 4148383 VDS202A16200 4143042 VDS402A16200 16,200 .6378 71 93 2,8 143 48 18 4148384 VDS202A16271 4143053 VDS402A16271 16,271 .6406 71 93 2,8 143 48 18 4148385 VDS202A16300 4143054 VDS402A16300 16,300 .6417 71 93 2,8 143 48 18 4148386 VDS202A16400 4143055 VDS402A16400 16,400 .6457 71 93 2,8 143 48 18 4148387 VDS202A16500 4143056 VDS402A16500 16,500 .6496 71 93 2,9 143 48 18 (continued) T20 widia.com Solid Carbide Drills
