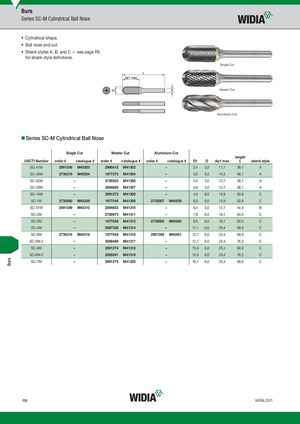

Burs Series SC-M Cylindrical Ball Nose • Cylindrical shape. • Ball nose end cut. • Shank styles A, B, and C — see page R5 for shank style definitions. Single Cut Master Cut Aluminium Cut „Series SC-M Cylindrical Ball Nose Single Cut Master Cut Aluminium Cut length USCTI Number order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L shank style SC-41M 2991248 M40303 2990415 M41303 – 2,4 3,0 11,1 38,1 A SC-42M 2736319 M40304 1977373 M41304 – 3,0 3,0 14,3 38,1 A SC-52M – 2735503 M41306 – 4,0 3,0 12,7 38,1 A SC-53M – 2894604 M41307 – 4,8 3,0 12,7 38,1 A SC-14M – 2991273 M41308 – 4,8 6,0 15,9 50,8 C SC-1M 2730690 M40309 1977546 M41309 2730007 M40559 6,0 6,0 15,9 50,8 C SC-51M 2991249 M40310 2894603 M41310 – 6,4 3,0 12,7 44,5 B SC-2M – 2729973 M41311 – 7,9 6,0 19,1 63,5 C SC-3M – 1977548 M41312 2730002 M40560 9,5 6,0 19,1 63,5 C SC-4M – 2987336 M41314 – 11,1 6,0 25,4 69,9 C SC-5M 2736314 M40316 1977549 M41316 2987349 M40561 12,7 6,0 25,4 69,9 C SC-5M-2 – 3009499 M41317 – 12,7 8,0 25,4 76,2 C SC-6M – 2991274 M41318 – 15,9 6,0 25,4 69,9 C SC-6M-2 – 3005591 M41319 – 15,9 8,0 25,4 76,2 C SC-7M – 2991275 M41320 – 19,1 6,0 25,4 69,9 C R8 widia.com Burs
