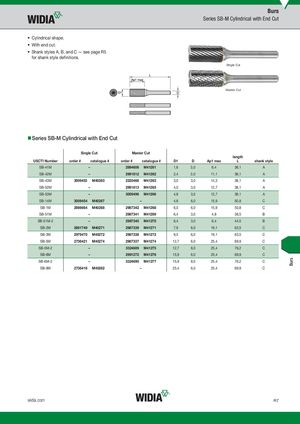

Burs Series SB-M Cylindrical with End Cut • Cylindrical shape. • With end cut. • Shank styles A, B, and C — see page R5 for shank style definitions. Single Cut Master Cut „Series SB-M Cylindrical with End Cut Single Cut Master Cut length USCTI Number order # catalogue # order # catalogue # D1 D Ap1 max L shank style SB-41M – 2894606 M41261 1,6 3,0 6,4 38,1 A SB-42M – 2991812 M41262 2,4 3,0 11,1 38,1 A SB-43M 3009453 M40263 2220466 M41263 3,0 3,0 14,3 38,1 A SB-52M – 2991813 M41265 4,0 3,0 12,7 38,1 A SB-53M – 3009496 M41266 4,8 3,0 12,7 38,1 A SB-14M 3009454 M40267 – 4,8 6,0 15,9 50,8 C SB-1M 2986664 M40268 2987342 M41268 6,0 6,0 15,9 50,8 C SB-51M – 2987341 M41269 6,4 3,0 4,8 36,5 B SB-51M-2 – 2987340 M41270 6,4 3,0 6,4 44,5 B SB-2M 2981749 M40271 2987339 M41271 7,9 6,0 19,1 63,5 C SB-3M 2979470 M40272 2987338 M41272 9,5 6,0 19,1 63,5 C SB-5M 2736421 M40274 2987337 M41274 12,7 6,0 25,4 69,9 C SB-5M-2 – 3324689 M41275 12,7 8,0 25,4 76,2 C SB-6M – 2991272 M41276 15,9 6,0 25,4 69,9 C SB-6M-2 – 3324690 M41277 15,9 8,0 25,4 76,2 C SB-9M 2736416 M40282 – 25,4 6,0 25,4 69,9 C widia.com R7 Burs
