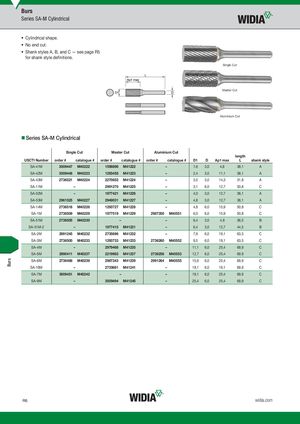

Burs Series SA-M Cylindrical • Cylindrical shape. • No end cut. • Shank styles A, B, and C — see page R5 for shank style definitions. Single Cut Master Cut Aluminium Cut „Series SA-M Cylindrical Single Cut Master Cut Aluminium Cut length USCTI Number order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L shank style SA-41M 3009447 M40222 1598896 M41222 – 1,6 3,0 4,8 38,1 A SA-42M 3009448 M40223 1293458 M41223 – 2,4 3,0 11,1 38,1 A SA-43M 2736521 M40224 2270852 M41224 – 3,0 3,0 14,3 31,8 A SA-11M – 2991270 M41225 – 3,1 6,0 12,7 50,8 C SA-52M – 1977421 M41226 – 4,0 3,0 12,7 38,1 A SA-53M 2961525 M40227 2949031 M41227 – 4,8 3,0 12,7 38,1 A SA-14M 2736516 M40228 1293727 M41228 – 4,8 6,0 15,9 50,8 C SA-1M 2736509 M40229 1977519 M41229 2987350 M40551 6,0 6,0 15,9 50,8 C SA-51M 2736505 M40230 – – 6,4 3,0 4,8 36,5 B SA-51M-2 – 1977415 M41231 – 6,4 3,0 12,7 44,5 B SA-2M 2991245 M40232 2735696 M41232 – 7,9 6,0 19,1 63,5 C SA-3M 2736500 M40233 1293733 M41233 2736260 M40552 9,5 6,0 19,1 63,5 C SA-4M – 2979468 M41235 – 11,1 6,0 25,4 69,9 C SA-5M 2990411 M40237 2219983 M41237 2736256 M40553 12,7 6,0 25,4 69,9 C SA-6M 2736488 M40239 2987343 M41239 2991264 M40555 15,9 6,0 25,4 69,9 C SA-16M – 2735681 M41241 – 19,1 6,0 19,1 69,9 C SA-7M 3009451 M40242 – – 19,1 6,0 25,4 69,9 C SA-9M – 3009494 M41245 – 25,4 6,0 25,4 69,9 C R6 widia.com Burs
