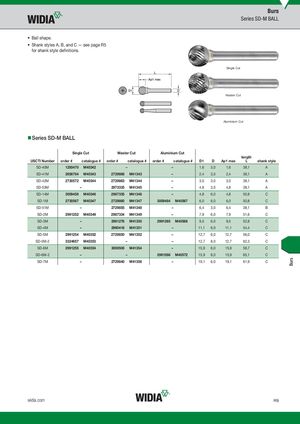

Burs Series SD-M BALL • Ball shape. • Shank styles A, B, and C — see page R5 for shank style definitions. Single Cut Master Cut Aluminium Cut „Series SD-M BALL Single Cut Master Cut Aluminium Cut length USCTI Number order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L shank style SD-40M 1293470 M40342 – – 1,6 3,0 1,6 38,1 A SD-41M 2656784 M40343 2729868 M41343 – 2,4 3,0 2,4 38,1 A SD-42M 2730572 M40344 2729863 M41344 – 3,0 3,0 3,0 38,1 A SD-53M – 2973335 M41345 – 4,8 3,0 4,8 38,1 A SD-14M 3009458 M40346 2987335 M41346 – 4,8 6,0 4,8 50,8 C SD-1M 2730567 M40347 2729860 M41347 3009484 M40567 6,0 6,0 6,0 50,8 C SD-51M – 2729855 M41348 – 6,4 3,0 6,4 38,1 B SD-2M 2991252 M40349 2987334 M41349 – 7,9 6,0 7,9 51,6 C SD-3M – 2991276 M41350 2991265 M40568 9,5 6,0 9,5 52,8 C SD-4M – 2990416 M41351 – 11,1 6,0 11,1 54,4 C SD-5M 2991254 M40352 2729850 M41352 – 12,7 6,0 12,7 56,0 C SD-5M-2 3324657 M40353 – – 12,7 8,0 12,7 62,3 C SD-6M 2991255 M40354 3009500 M41354 – 15,9 6,0 15,9 58,7 C SD-6M-2 – – 2991266 M40572 15,9 8,0 15,9 65,1 C SD-7M – 2729840 M41356 – 19,1 6,0 19,1 61,9 C widia.com R9 Burs
