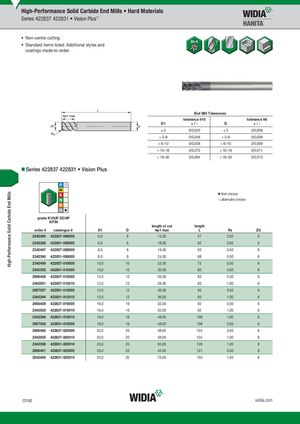

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 422837 422831 • Vision Plus™ • Non-centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- )3 0/0,040 )3 0/0,006 > 3–6 0/0,048 > 3–6 0/0,008 > 6–10 0/0,058 > 6–10 0/0,009 > 10–18 0/0,070 > 10–18 0/0,011 > 18–30 0/0,084 > 18–30 0/0,013 „Series 422837 422831 • Vision Plus ⅷ first choice ࠗ alternate choice gradKe10KU1F0-UDFC-DHCPHP AlTiN length of cut length order # catalogue # D1 D Ap1 max L R¡ ZU 2342495 422837-006005 6,0 6 13,00 57 0,50 6 2342388 422831-006005 6,0 6 18,00 62 0,50 6 2342497 422837-008005 8,0 8 19,00 63 0,50 6 2342390 422831-008005 8,0 8 24,00 68 0,50 6 2342499 422837-010005 10,0 10 22,00 72 0,50 6 2342392 422831-010005 10,0 10 30,00 80 0,50 6 2656458 422837-012005 12,0 12 26,00 83 0,50 6 2342501 422837-012010 12,0 12 26,00 83 1,00 6 2657057 422831-012005 12,0 12 36,00 93 0,50 6 2342394 422831-012010 12,0 12 36,00 93 1,00 6 2656459 422837-016005 16,0 16 32,00 92 0,50 6 2342502 422837-016010 16,0 16 32,00 92 1,00 6 2342396 422831-016010 16,0 16 48,00 108 1,00 6 2657058 422831-016005 16,0 16 48,00 108 0,50 6 2656460 422837-020005 20,0 20 38,00 104 0,50 8 2342505 422837-020010 20,0 20 38,00 104 1,00 8 2342398 422831-020010 20,0 20 60,00 126 1,00 8 2656461 422837-025005 25,0 25 45,00 121 0,50 8 2342400 422831-025015 25,0 25 75,00 150 1,50 8 O192 widia.com
