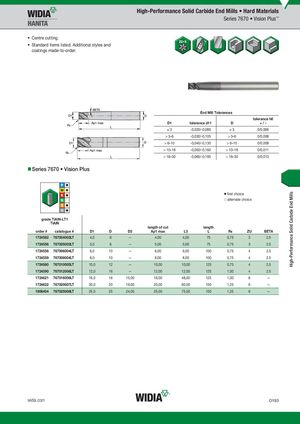

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 7670 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/0,006 > 3–6 -0,030/-0,105 > 3–6 0/0,008 > 6–10 -0,040/-0,130 > 6–10 0/0,009 > 10–18 -0,050/-0,160 > 10–18 0/0,011 > 18–30 -0,065/-0,195 > 18–30 0/0,013 „Series 7670 • Vision Plus ⅷ first choice ࠗ alternate choice graTdieAlTNiA-lNLT-L1T1 TiAlN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ ZU BETA 1724582 767004002LT 4,0 6 — 4,00 4,00 75 0,75 3 2.5 1724556 767005002LT 5,0 6 — 5,00 5,00 75 0,75 3 2.5 1724558 767006004LT 6,0 10 — 6,00 6,00 100 0,75 4 2.5 1724559 767008004LT 8,0 10 — 8,00 8,00 100 0,75 4 2.5 1724560 767010005LT 10,0 12 — 10,00 10,00 125 0,75 4 2.5 1724590 767012006LT 12,0 16 — 12,00 12,00 125 1,00 4 2.5 1724621 767016006LT 16,0 16 15,00 16,00 48,00 125 1,00 6 — 1724622 767020007LT 20,0 20 19,00 20,00 60,00 150 1,25 6 — 1806404 767025008LT 25,0 25 24,00 25,00 75,00 150 1,25 6 — widia.com O193
