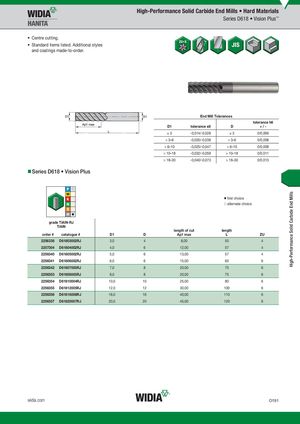

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series D618 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series D618 • Vision Plus ⅷ first choice ࠗ alternate choice graTdieAlTNiA-RlNJ-RJ TiAlN length of cut length order # catalogue # D1 D Ap1 max L ZU 2256338 D61803002RJ 3,0 4 8,00 50 4 2257304 D61804002RJ 4,0 6 12,00 57 4 2256340 D61805002RJ 5,0 6 13,00 57 4 2256341 D61806002RJ 6,0 6 15,00 60 6 2256342 D61807003RJ 7,0 8 20,00 75 6 2256353 D61808003RJ 8,0 8 20,00 75 6 2256354 D61810004RJ 10,0 10 25,00 80 6 2256355 D61812005RJ 12,0 12 30,00 100 6 2256356 D61816006RJ 16,0 16 40,00 110 6 2256357 D61820007RJ 20,0 20 45,00 120 6 widia.com O191
