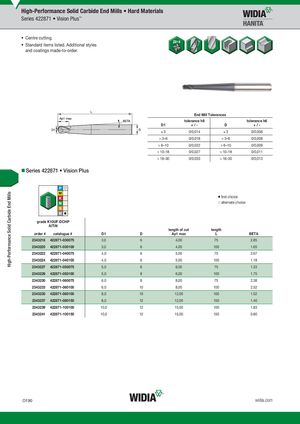

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 422871 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h8 tolerance h6 D1 +/- D +/- )3 0/0,014 )3 0/0,006 > 3–6 0/0,018 > 3–6 0/0,008 > 6–10 0/0,022 > 6–10 0/0,009 > 10–18 0/0,027 > 10–18 0/0,011 > 18–30 0/0,033 > 18–30 0/0,013 „Series 422871 • Vision Plus ⅷ first choice ࠗ alternate choice graKde10KU1F0-UDFC-DHCPHP AlTiN length of cut length order # catalogue # D1 D Ap1 max L BETA 2343218 422871-030075 3,0 6 4,00 75 2.85 2343220 422871-030100 3,0 6 4,00 100 1.65 2343222 422871-040075 4,0 6 5,00 75 2.67 2343224 422871-040100 4,0 6 5,00 100 1.18 2343227 422871-050075 5,0 6 6,00 75 1.33 2343229 422871-050100 5,0 8 6,00 100 1.75 2343230 422871-060075 6,0 8 8,00 75 2.38 2343233 422871-060100 6,0 10 8,00 100 2.52 2343235 422871-080100 8,0 10 12,00 100 1.52 2343237 422871-080150 8,0 12 12,00 150 1.40 2343239 422871-100100 10,0 12 15,00 100 1.83 2343241 422871-100150 10,0 12 15,00 150 0.80 O190 widia.com
