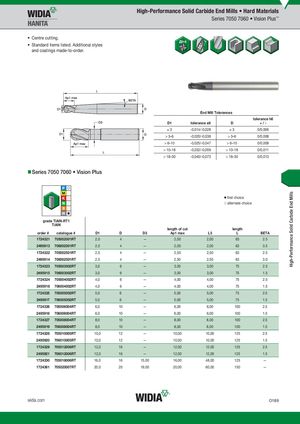

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 7050 7060 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 7050 7060 • Vision Plus ⅷ first choice ࠗ alternate choice graTdieAlTNiA-lRNT-R1T1 TiAlN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L BETA 1724321 705002001RT 2,0 4 — 2,00 2,00 63 2.5 2495913 706002001RT 2,0 4 — 2,00 2,00 63 3.5 1724322 705002501RT 2,5 4 — 2,50 2,50 63 2.5 2495914 706002501RT 2,5 4 — 2,50 2,50 63 3.0 1724323 705003002RT 3,0 6 — 3,00 3,00 75 2.5 2495915 706003002RT 3,0 6 — 3,00 3,00 75 1.5 1724324 705004002RT 4,0 6 — 4,00 4,00 75 2.5 2495916 706004002RT 4,0 6 — 4,00 4,00 75 1.5 1724325 705005002RT 5,0 6 — 5,00 5,00 75 2.5 2495917 706005002RT 5,0 6 — 5,00 5,00 75 1.5 1724326 705006004RT 6,0 10 — 6,00 6,00 100 2.5 2495918 706006004RT 6,0 10 — 6,00 6,00 100 1.5 1724327 705008004RT 8,0 10 — 8,00 8,00 100 2.5 2495919 706008004RT 8,0 10 — 8,00 8,00 100 1.5 1724328 705010005RT 10,0 12 — 10,00 10,00 125 2.5 2495920 706010005RT 10,0 12 — 10,00 10,00 125 1.5 1724329 705012006RT 12,0 16 — 12,00 12,00 125 2.5 2495921 706012006RT 12,0 16 — 12,00 12,00 125 1.5 1724330 705016006RT 16,0 16 15,00 16,00 48,00 125 — 1724361 705020007RT 20,0 20 19,00 20,00 60,00 150 — widia.com O189
