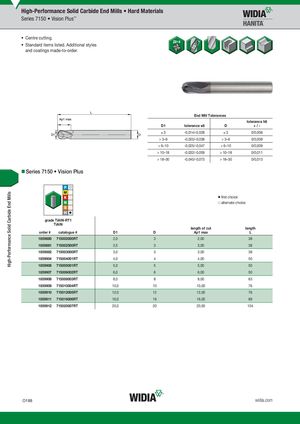

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 7150 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 7150 • Vision Plus ⅷ first choice ࠗ alternate choice gradTeiATliNA-lRNT-RT1 TiAlN length of cut length order # catalogue # D1 D Ap1 max L 1859880 715002000RT 2,0 3 2,00 38 1859881 715002500RT 2,5 3 3,00 38 1859882 715003000RT 3,0 3 3,00 38 1859904 715004001RT 4,0 4 4,00 50 1859906 715005001RT 5,0 5 5,00 50 1859907 715006002RT 6,0 6 6,00 50 1859908 715008003RT 8,0 8 8,00 63 1859909 715010004RT 10,0 10 10,00 76 1859910 715012005RT 12,0 12 12,00 76 1859911 715016006RT 16,0 16 16,00 89 1859912 715020007RT 20,0 20 20,00 104 O188 widia.com
