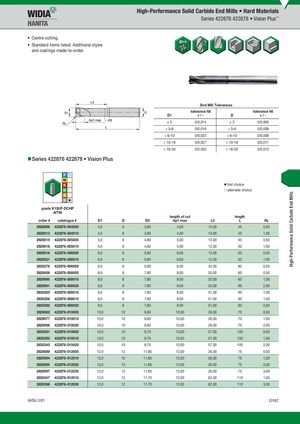

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 422876 422878 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h8 tolerance h6 D1 +/- D +/- )3 0/0,014 )3 0/0,006 > 3–6 0/0,018 > 3–6 0/0,008 > 6–10 0/0,022 > 6–10 0/0,009 > 10–18 0/0,027 > 10–18 0/0,011 > 18–30 0/0,033 > 18–30 0/0,013 Series 422876 422878 • Vision Plus ⅷ first choice ࠗ alternate choice graKde10KU1F0-UDFC-HDPCHP AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ 2628898 422876-004005 4,0 6 3,80 4,00 10,00 45 0,50 2629013 422876-004010 4,0 6 3,80 4,00 10,00 45 1,00 2629015 422876-005005 5,0 6 4,80 5,00 12,00 50 0,50 2629016 422876-005010 5,0 6 4,80 5,00 12,00 50 1,00 2629018 422876-006005 6,0 6 5,80 6,00 12,00 50 0,50 2629021 422876-006010 6,0 6 5,80 6,00 12,00 50 1,00 2630276 422878-006005 6,0 6 5,80 6,00 42,00 80 0,50 2629056 422876-008005 8,0 8 7,80 8,00 20,00 60 0,50 2629060 422876-008010 8,0 8 7,80 8,00 20,00 60 1,00 2629061 422876-008020 8,0 8 7,80 8,00 20,00 60 2,00 2630285 422878-008010 8,0 8 7,80 8,00 51,00 90 1,00 2630288 422878-008015 8,0 8 7,80 8,00 51,00 90 1,50 2630290 422878-008020 8,0 8 7,80 8,00 51,00 90 2,00 2629062 422876-010005 10,0 10 9,80 10,00 26,00 70 0,50 2629077 422876-010010 10,0 10 9,80 10,00 26,00 70 1,00 2629086 422876-010020 10,0 10 9,80 10,00 26,00 70 2,00 2630291 422878-010005 10,0 10 9,70 10,00 57,00 100 0,50 2630292 422878-010010 10,0 10 9,70 10,00 57,00 100 1,00 2630345 422878-010020 10,0 10 9,70 10,00 57,00 100 2,00 2629089 422876-012005 12,0 12 11,80 12,00 26,00 75 0,50 2629094 422876-012010 12,0 12 11,80 12,00 26,00 75 1,00 2629095 422876-012020 12,0 12 11,80 12,00 26,00 75 2,00 2629097 422876-012030 12,0 12 11,80 12,00 26,00 75 3,00 2630347 422878-012010 12,0 12 11,70 12,00 62,00 110 1,00 2630386 422878-012030 12,0 12 11,70 12,00 62,00 110 3,00 widia.com O187
