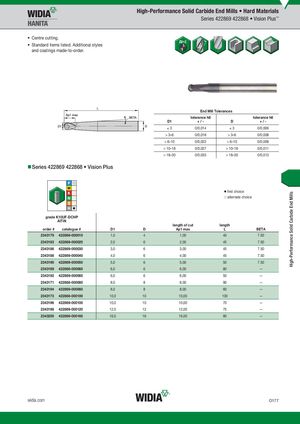

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 422869 422868 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h8 tolerance h6 D1 +/- D +/- )3 0/0,014 )3 0/0,006 > 3–6 0/0,018 > 3–6 0/0,008 > 6–10 0/0,022 > 6–10 0/0,009 > 10–18 0/0,027 > 10–18 0/0,011 > 18–30 0/0,033 > 18–30 0/0,013 Series 422869 422868 • Vision Plus ⅷ first choice ࠗ alternate choice gradKe10KU1F0-UDFC-DHCPHP AlTiN length of cut length order # catalogue # D1 D Ap1 max L BETA 2343179 422869-000010 1,0 4 1,00 40 7.50 2343183 422869-000020 2,0 6 2,00 45 7.50 2343186 422869-000030 3,0 6 3,00 45 7.50 2343188 422869-000040 4,0 6 4,00 45 7.50 2343190 422869-000050 5,0 6 5,00 50 7.50 2343169 422868-000060 6,0 6 6,00 80 — 2343192 422869-000060 6,0 6 6,00 50 — 2343171 422868-000080 8,0 8 8,00 90 — 2343194 422869-000080 8,0 8 8,00 60 — 2343173 422868-000100 10,0 10 10,00 100 — 2343196 422869-000100 10,0 10 10,00 70 — 2343198 422869-000120 12,0 12 12,00 75 — 2343200 422869-000160 16,0 16 16,00 80 — widia.com O177
