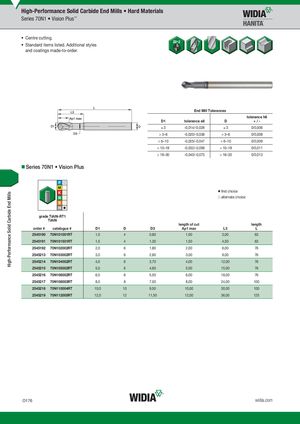

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 70N1 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 70N1 • Vision Plus ⅷ first choice ࠗ alternate choice graTdiAe lTNiA- lRNT-R1T1 TiAlN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L 2545190 70N101001RT 1,0 4 0,80 1,00 3,00 63 2545191 70N101501RT 1,5 4 1,30 1,50 4,50 63 2545192 70N102002RT 2,0 6 1,80 2,00 6,00 76 2545213 70N103002RT 3,0 6 2,80 3,00 9,00 76 2545214 70N104002RT 4,0 6 3,70 4,00 12,00 76 2545215 70N105002RT 5,0 6 4,60 5,00 15,00 76 2545216 70N106002RT 6,0 6 5,50 6,00 18,00 76 2545217 70N108003RT 8,0 8 7,50 8,00 24,00 100 2545218 70N110004RT 10,0 10 9,50 10,00 30,00 100 2545219 70N112005RT 12,0 12 11,50 12,00 36,00 125 O176 widia.com
