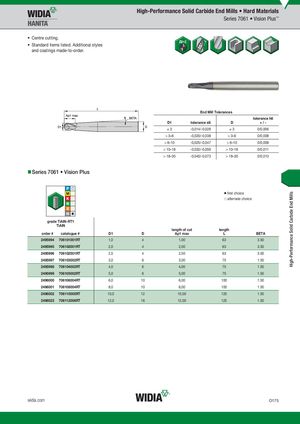

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 7061 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 7061 • Vision Plus ⅷ first choice ࠗ alternate choice graTdiAelTNiA- lRNT-R1 T1 TiAlN length of cut length order # catalogue # D1 D Ap1 max L BETA 2495994 706101001RT 1,0 4 1,00 63 3.50 2495995 706102001RT 2,0 4 2,00 63 3.50 2495996 706102501RT 2,5 4 2,50 63 3.00 2495997 706103002RT 3,0 6 3,00 75 1.50 2495998 706104002RT 4,0 6 4,00 75 1.50 2495999 706105002RT 5,0 6 5,00 75 1.50 2496000 706106004RT 6,0 10 6,00 100 1.50 2496001 706108004RT 8,0 10 8,00 100 1.50 2496002 706110005RT 10,0 12 10,00 125 1.50 2496023 706112006RT 12,0 16 12,00 125 1.50 widia.com O175
