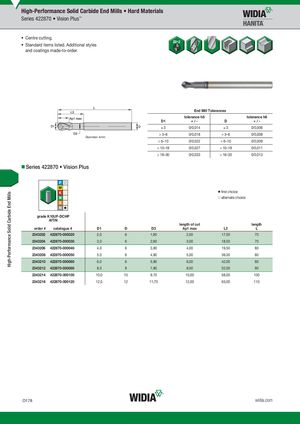

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 422870 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h8 tolerance h6 D1 +/- D +/- )3 0/0,014 )3 0/0,006 > 3–6 0/0,018 > 3–6 0/0,008 Diameter 4mm > 6–10 0/0,022 > 6–10 0/0,009 > 10–18 0/0,027 > 10–18 0/0,011 > 18–30 0/0,033 > 18–30 0/0,013 „Series 422870 • Vision Plus ⅷ first choice ࠗ alternate choice graKde10KU1F0-UDFC-HDPCHP AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L 2343202 422870-000020 2,0 6 1,90 2,00 17,50 70 2343204 422870-000030 3,0 6 2,90 3,00 18,50 70 2343206 422870-000040 4,0 6 3,80 4,00 19,50 80 2343208 422870-000050 5,0 6 4,80 5,00 39,00 80 2343210 422870-000060 6,0 6 5,80 6,00 42,00 80 2343212 422870-000080 8,0 8 7,80 8,00 52,00 90 2343214 422870-000100 10,0 10 9,70 10,00 58,00 100 2343216 422870-000120 12,0 12 11,70 12,00 63,00 110 O178 widia.com
