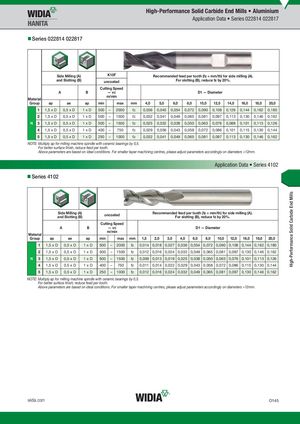

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Application Data • Series 022814 022817 „Series 022814 022817 Side Milling (A) K10F Recommended feed per tooth (fz = mm/th) for side milling (A). and Slotting (B) uncoated For slotting (B), reduce fz by 20%. Cutting Speed A B — vc D1 — Diameter m/min Material Group ap ae ap min max mm 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 1 1,5 x D 0,5 x D 1xD 500 – 2000 fz 0,036 0,045 0,054 0,072 0,090 0,108 0,126 0,144 0,162 0,180 2 1,5 x D 0,5 x D 1xD 500 – 1500 fz 0,032 0,041 0,049 0,065 0,081 0,097 0,113 0,130 0,146 0,162 N 3 1,5 x D 0,5 x D 1xD 500 – 1500 fz 0,025 0,032 0,038 0,050 0,063 0,076 0,088 0,101 0,113 0,126 4 1,5 x D 0,5 x D 1xD 400 – 750 fz 0,029 0,036 0,043 0,058 0,072 0,086 0,101 0,115 0,130 0,144 5 1,5 x D 0,5 x D 1xD 250 – 1000 fz 0,032 0,041 0,049 0,065 0,081 0,097 0,113 0,130 0,146 0,162 NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5. For better surface finish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm. Application Data • Series 4102 „Series 4102 Step ID: 100022864 Module Number: 22544 Module Name: Application Data • List 4102 Web Name: Application Data • List 4102 Side Milling (A)and Slotting (B)uncoated Recommended feed per tooth (fz = mm/th) for side milling (A).For slotting (B), reduce fz by 20%. Cutting Speed A B — vc D1 — Diameter m/min Material Group ap ae ap min max mm 1,5 2,0 3,0 4,0 6,0 8,0 10,0 12,0 16,0 18,0 20,0 1 1,5 x D 0,5 x D 1xD 500 – 2000 fz 0,014 0,018 0,027 0,036 0,054 0,072 0,090 0,108 0,144 0,162 0,180 2 1,5 x D 0,5 x D 1xD 500 – 1500 fz 0,012 0,016 0,024 0,032 0,049 0,065 0,081 0,097 0,130 0,146 0,162 N 3 1,5 x D 0,5 x D 1xD 500 – 1500 fz 0,009 0,013 0,019 0,025 0,038 0,050 0,063 0,076 0,101 0,113 0,126 4 1,5 x D 0,5 x D 1xD 400 – 750 fz 0,011 0,014 0,022 0,029 0,043 0,058 0,072 0,086 0,115 0,130 0,144 5 1,5 x D 0,5 x D 1xD 250 – 1000 fz 0,012 0,016 0,024 0,032 0,049 0,065 0,081 0,097 0,130 0,146 0,162 NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5. For better surface finish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm. widia.com O145
