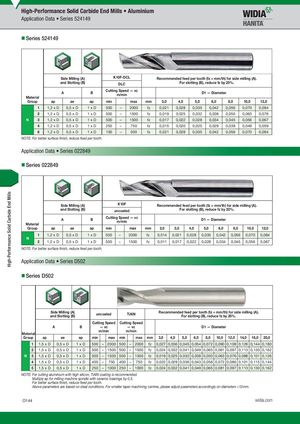

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Application Data • Series 524149 „Series 524149 Side Milling (A) K10F-DCL Recommended feed per tooth (fz = mm/th) for side milling (A). and Slotting (B) DLC For slotting (B), reduce fz by 20%. A B Cutting Speed — vcm/min D1 — Diameter Material Group ap ae ap min max mm 3,0 4,0 5,0 6,0 8,0 10,0 12,0 1 1,2 x D 0,5 x D 1xD 500 – 2000 fz 0,021 0,028 0,035 0,042 0,056 0,070 0,084 2 1,2 x D 0,5 x D 1xD 500 – 1500 fz 0,019 0,025 0,032 0,038 0,050 0,063 0,076 N 3 1,2 x D 0,5 x D 1xD 500 – 1500 fz 0,017 0,022 0,028 0,034 0,045 0,056 0,067 4 1,2 x D 0,5 x D 1xD 250 – 750 fz 0,015 0,020 0,025 0,029 0,039 0,049 0,059 6 1,2 x D 0,5 x D 1xD 100 – 500 fz 0,021 0,028 0,035 0,042 0,056 0,070 0,084 NOTE: For better surface finish, reduce feed per tooth. Application Data • Series 022849 „Series 022849 Side Milling (A) K10F Recommended feed per tooth (fz = mm/th) for side milling (A). and Slotting (B) uncoated For slotting (B), reduce fz by 20%. A B Cutting Speed — vcm/min D1 — Diameter Material Group ap ae ap min max mm 2,0 3,0 4,0 5,0 6,0 8,0 10,0 12,0 1 1,2 x D 0,5 x D 1xD 500 – 2000 fz 0,014 0,021 0,028 0,035 0,042 0,056 0,070 0,084 N 2 1,2 x D 0,5 x D 1xD 500 – 1500 fz 0,011 0,017 0,022 0,028 0,034 0,045 0,056 0,067 NOTE: For better surface finish, reduce feed per tooth. Application Data • Series D502 „Series D502 Side Milling (A)and Slotting (B)uncoated TiAlN Recommended feed per tooth (fz = mm/th) for side milling (A).For slotting (B), reduce fz by 20%. Cutting Speed Cutting Speed A B — vc — vc D1 — Diameter m/min m/min Material Group ap ae ap min max min max mm 3,0 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 20,0 1 1,5 x D 0,5 x D 1xD 500 – 2000 500 – 2000 fz 0,027 0,036 0,045 0,054 0,072 0,090 0,108 0,126 0,144 0,180 2 1,5 x D 0,5 x D 1xD 500 – 1500 500 – 1500 fz 0,024 0,032 0,041 0,049 0,065 0,081 0,097 0,113 0,130 0,162 N 3 1,5 x D 0,5 x D 1xD 500 – 1500 500 – 1500 fz 0,019 0,025 0,032 0,038 0,050 0,063 0,076 0,088 0,101 0,126 4 1,5 x D 0,5 x D 1xD 400 – 750 400 – 750 fz 0,022 0,029 0,036 0,043 0,058 0,072 0,086 0,101 0,115 0,144 5 1,5 x D 0,5 x D 1xD 250 – 1000 250 – 1000 fz 0,024 0,032 0,041 0,049 0,065 0,081 0,097 0,113 0,130 0,162 NOTE: For cutting aluminium with high silicon, TiAlN coating is recommended. Multiply ap for milling machine spindle with ceramic bearings by 0,5. For better surface finish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm. O144 widia.com
