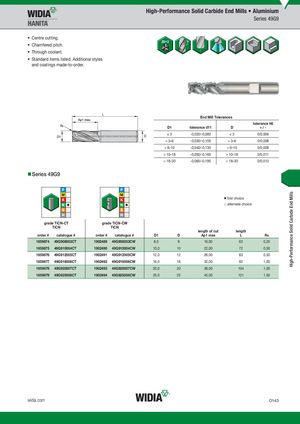

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 49G9 • Centre cutting. • Chamfered pitch. • Through coolant. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/0,006 > 3–6 -0,030/-0,105 > 3–6 0/0,008 > 6–10 -0,040/-0,130 > 6–10 0/0,009 > 10–18 -0,050/-0,160 > 10–18 0/0,011 > 18–30 -0,065/-0,195 > 18–30 0/0,013 „Series 49G9 ⅷ first choice ࠗ alternate choice graTdieCTNi-CCNT-CT graTdIeCTNi-CCNW-CW TiCN TiCN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L R¡ 1859874 49G908003CT 1902489 49G908003CW 8,0 8 16,00 63 0,25 1859875 49G910004CT 1902490 49G910004CW 10,0 10 22,00 72 0,50 1859876 49G912005CT 1902491 49G912005CW 12,0 12 26,00 83 0,50 1859877 49G916006CT 1902492 49G916006CW 16,0 16 32,00 92 1,00 1859878 49G920007CT 1902493 49G920007CW 20,0 20 38,00 104 1,00 1859879 49G925008CT 1902494 49G925008CW 25,0 25 45,00 121 1,50 widia.com O143
