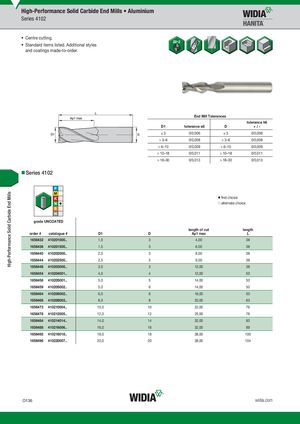

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 4102 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 0/0,006 )3 0/0,006 > 3–6 0/0,008 > 3–6 0/0,008 > 6–10 0/0,009 > 6–10 0/0,009 > 10–18 0/0,011 > 10–18 0/0,011 > 18–30 0/0,013 > 18–30 0/0,013 „Series 4102 ⅷ first choice ࠗ alternate choice graUdeNCUONCATOEADTED length of cut length order # catalogue # D1 D Ap1 max L 1656432 410201000.. 1,0 3 4,00 38 1656436 410201500.. 1,5 3 6,00 38 1656440 410202000.. 2,0 3 8,00 38 1656444 410202500.. 2,5 3 9,00 38 1656448 410203000.. 3,0 3 12,00 38 1656454 410204001.. 4,0 4 12,00 50 1656458 410205001.. 5,0 5 14,00 50 1656459 410205002.. 5,0 6 14,00 50 1656464 410206002.. 6,0 6 16,00 50 1656468 410208003.. 8,0 8 20,00 63 1656473 410210004.. 10,0 10 22,00 76 1656478 410212005.. 12,0 12 25,00 76 1656484 410214014.. 14,0 14 32,00 83 1656488 410216006.. 16,0 16 32,00 89 1656492 410218018.. 18,0 18 38,00 100 1656496 410220007.. 20,0 20 38,00 104 O136 widia.com
