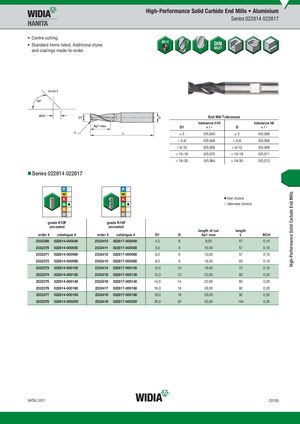

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 022814 022817 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- X )3 0/0,040 )3 0/0,006 > 3–6 0/0,048 > 3–6 0/0,008 > 6–10 0/0,058 > 6–10 0/0,009 > 10–18 0/0,070 > 10–18 0/0,011 > 18–30 0/0,084 > 18–30 0/0,013 „Series 022814 022817 ⅷ first choice ࠗ alternate choice graKde10KF10F gradKe10KF10F uncoated uncoated length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH 2332369 022814-000040 2332410 022817-000040 4,0 6 8,00 57 0,10 2332370 022814-000050 2332411 022817-000050 5,0 6 10,00 57 0,10 2332371 022814-000060 2332412 022817-000060 6,0 6 10,00 57 0,10 2332372 022814-000080 2332413 022817-000080 8,0 8 16,00 63 0,10 2332373 022814-000100 2332414 022817-000100 10,0 10 19,00 72 0,10 2332374 022814-000120 2332415 022817-000120 12,0 12 22,00 83 0,20 2332375 022814-000140 2332416 022817-000140 14,0 14 22,00 83 0,20 2332376 022814-000160 2332417 022817-000160 16,0 16 26,00 92 0,20 2332377 022814-000180 2332418 022817-000180 18,0 18 26,00 92 0,20 2332378 022814-000200 2332419 022817-000200 20,0 20 32,00 104 0,20 widia.com O135
