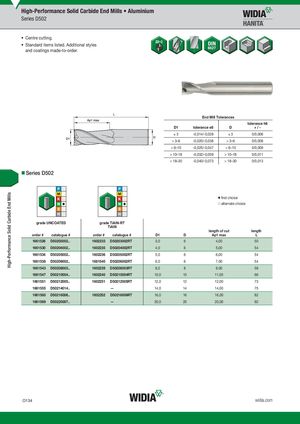

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series D502 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series D502 ⅷ first choice ࠗ alternate choice gradUeNUCNOCAOTEADTED gradTeiATlNiA-lRNT-RT TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L 1661526 D50203002.. 1602233 D50203002RT 3,0 6 4,00 50 1661530 D50204002.. 1602235 D50204002RT 4,0 6 5,00 54 1661534 D50205002.. 1602236 D50205002RT 5,0 6 6,00 54 1661538 D50206002.. 1661540 D50206002RT 6,0 6 7,00 54 1661543 D50208003.. 1602239 D50208003RT 8,0 8 9,00 58 1661547 D50210004.. 1602240 D50210004RT 10,0 10 11,00 66 1661551 D50212005.. 1602251 D50212005RT 12,0 12 12,00 73 1661555 D50214014.. — 14,0 14 14,00 75 1661560 D50216006.. 1602252 D50216006RT 16,0 16 16,00 82 1661569 D50220007.. — 20,0 20 20,00 92 O134 widia.com
