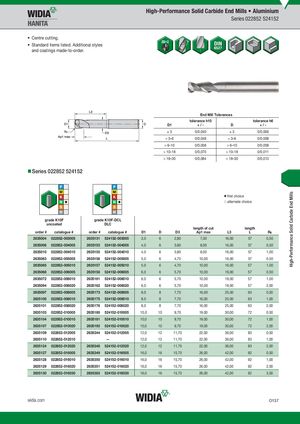

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 022852 524152 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- )3 0/0,040 )3 0/0,006 > 3–6 0/0,048 > 3–6 0/0,008 > 6–10 0/0,058 > 6–10 0/0,009 > 10–18 0/0,070 > 10–18 0/0,011 > 18–30 0/0,084 > 18–30 0/0,013 „Series 022852 524152 ⅷ first choice ࠗ alternate choice graKd1e0KF10F graKd1e0KF1-D0FC-LDCL uncoated DLC length of cut length order # catalogue # order # catalogue # D1 D D3 Ap1 max L3 L R¡ 2635004 022852-003005 2635131 524152-003005 3,0 6 2,80 7,00 16,00 57 0,50 2635006 022852-004005 2635153 524152-004005 4,0 6 3,80 8,00 16,00 57 0,50 2635010 022852-004010 2635155 524152-004010 4,0 6 3,80 8,00 16,00 57 1,00 2635063 022852-005005 2635156 524152-005005 5,0 6 4,70 10,00 16,00 57 0,50 2635065 022852-005010 2635157 524152-005010 5,0 6 4,70 10,00 16,00 57 1,00 2635068 022852-006005 2635158 524152-006005 6,0 6 5,70 10,00 19,00 57 0,50 2635072 022852-006010 2635161 524152-006010 6,0 6 5,70 10,00 19,00 57 1,00 2635094 022852-006020 2635162 524152-006020 6,0 6 5,70 10,00 19,00 57 2,00 2635097 022852-008005 2635173 524152-008005 8,0 8 7,70 16,00 25,00 63 0,50 2635100 022852-008010 2635175 524152-008010 8,0 8 7,70 16,00 25,00 63 1,00 2635101 022852-008020 2635176 524152-008020 8,0 8 7,70 16,00 25,00 63 2,00 2635103 022852-010005 2635180 524152-010005 10,0 10 9,70 19,00 30,00 72 0,50 2635104 022852-010010 2635181 524152-010010 10,0 10 9,70 19,00 30,00 72 1,00 2635107 022852-010020 2635193 524152-010020 10,0 10 9,70 19,00 30,00 72 2,00 2635109 022852-012005 2635344 524152-012005 12,0 12 11,70 22,00 36,00 83 0,50 2635110 022852-012010 — 12,0 12 11,70 22,00 36,00 83 1,00 2635124 022852-012020 2635348 524152-012020 12,0 12 11,70 22,00 36,00 83 2,00 2635127 022852-016005 2635349 524152-016005 16,0 16 15,70 26,00 42,00 92 0,50 2635128 022852-016010 2635350 524152-016010 16,0 16 15,70 26,00 42,00 92 1,00 2635129 022852-016020 2635351 524152-016020 16,0 16 15,70 26,00 42,00 92 2,00 2635130 022852-016030 2635383 524152-016030 16,0 16 15,70 26,00 42,00 92 3,00 widia.com O137
