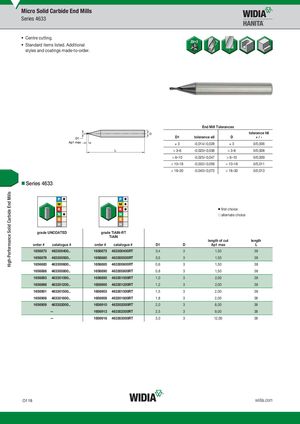

High-Performance Solid Carbide End Mills Micro Solid Carbide End Mills Series 4633 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 4633 ⅷ first choice ࠗ alternate choice grUaNdeCOUANTCEODAT- E..D graTdieATlNiA-RlNT-RT TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L 1656873 463300400.. 1656875 463300400RT 0,4 3 1,50 38 1656878 463300500.. 1656880 463300500RT 0,5 3 1,50 38 1656883 463300600.. 1656885 463300600RT 0,6 3 1,50 38 1656888 463300800.. 1656890 463300800RT 0,8 3 1,50 38 1656893 463301000.. 1656895 463301000RT 1,0 3 2,00 38 1656898 463301200.. 1656900 463301200RT 1,2 3 2,00 38 1656901 463301500.. 1656903 463301500RT 1,5 3 2,00 38 1656906 463301800.. 1656908 463301800RT 1,8 3 2,00 38 1656909 463302000.. 1656910 463302000RT 2,0 3 8,00 38 — 1656913 463302500RT 2,5 3 9,00 38 — 1656916 463303000RT 3,0 3 12,00 38 O118 widia.com
