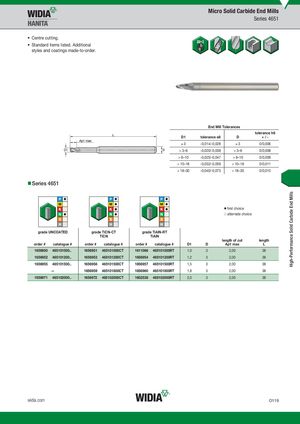

High-Performance Solid Carbide End Mills Micro Solid Carbide End Mills Series 4651 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 4651 ⅷ first choice ࠗ alternate choice grUaNdeCOUANTCEODAT- E..D graTdieCTNi-CCNT-CT graTdieATlNiA-RlNT-RT TiCN TiAlN length of cut length order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L 1656950 465101000.. 1656951 465101000CT 1611066 465101000RT 1,0 3 2,00 38 1656952 465101200.. 1656953 465101200CT 1656954 465101200RT 1,2 3 2,00 38 1656955 465101500.. 1656956 465101500CT 1656957 465101500RT 1,5 3 2,00 38 — 1656959 465101800CT 1656960 465101800RT 1,8 3 2,00 38 1656971 465102000.. 1656972 465102000CT 1602538 465102000RT 2,0 3 2,00 38 widia.com O119
