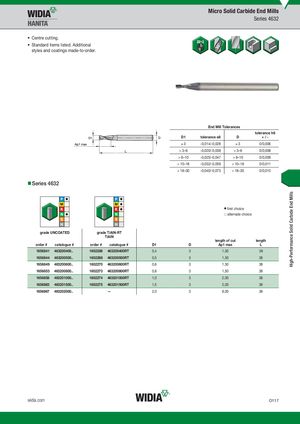

High-Performance Solid Carbide End Mills Micro Solid Carbide End Mills Series 4632 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 4632 ⅷ first choice ࠗ alternate choice grUaNdeCOUANTCEODAT- E..D graTdieATlNiA-RlNT-RT TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L 1656841 463200400.. 1602266 463200400RT 0,4 3 1,50 38 1656844 463200500.. 1602268 463200500RT 0,5 3 1,50 38 1656849 463200600.. 1602270 463200600RT 0,6 3 1,50 38 1656853 463200800.. 1602273 463200800RT 0,8 3 1,50 38 1656858 463201000.. 1602274 463201000RT 1,0 3 2,00 38 1656863 463201500.. 1602275 463201500RT 1,5 3 2,00 38 1656867 463202000.. — 2,0 3 8,00 38 widia.com O117
