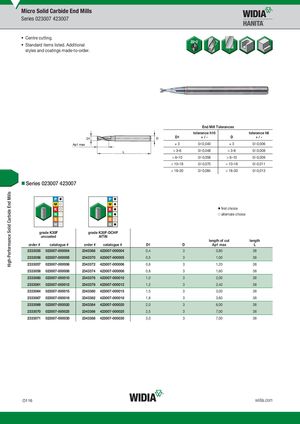

High-Performance Solid Carbide End Mills Micro Solid Carbide End Mills Series 023007 423007 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- )3 0/-0,040 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 „Series 023007 423007 ⅷ first choice ࠗ alternate choice graKde30KF30F graKde30KF3-0DFC-HDPCHP uncoated AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L 2333055 023007-000004 2343368 423007-000004 0,4 3 0,80 38 2333056 023007-000005 2343370 423007-000005 0,5 3 1,00 38 2333057 023007-000006 2343372 423007-000006 0,6 3 1,20 38 2333058 023007-000008 2343374 423007-000008 0,8 3 1,60 38 2333060 023007-000010 2343376 423007-000010 1,0 3 2,00 38 2333061 023007-000012 2343378 423007-000012 1,2 3 2,40 38 2333064 023007-000015 2343380 423007-000015 1,5 3 3,00 38 2333067 023007-000018 2343382 423007-000018 1,8 3 3,60 38 2333069 023007-000020 2343384 423007-000020 2,0 3 6,00 38 2333070 023007-000025 2343386 423007-000025 2,5 3 7,00 38 2333071 023007-000030 2343388 423007-000030 3,0 3 7,00 38 O116 widia.com
