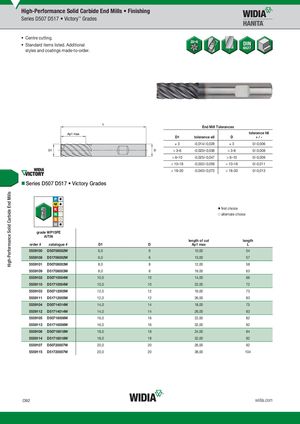

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series D507 D517 • Victory™ Grades • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series D507 D517 • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D Ap1 max L 5559100 D50706002W 6,0 6 10,00 54 5559108 D51706002W 6,0 6 13,00 57 5559101 D50708003W 8,0 8 12,00 58 5559109 D51708003W 8,0 8 19,00 63 5559102 D50710004W 10,0 10 14,00 66 5559110 D51710004W 10,0 10 22,00 72 5559103 D50712005W 12,0 12 16,00 73 5559111 D51712005W 12,0 12 26,00 83 5559104 D50714014W 14,0 14 18,00 75 5559112 D51714014W 14,0 14 26,00 83 5559105 D50716006W 16,0 16 22,00 82 5559113 D51716006W 16,0 16 32,00 92 5559106 D50718018W 18,0 18 24,00 84 5559114 D51718018W 18,0 18 32,00 92 5559107 D50720007W 20,0 20 26,00 92 5559115 D51720007W 20,0 20 38,00 104 O92 widia.com
