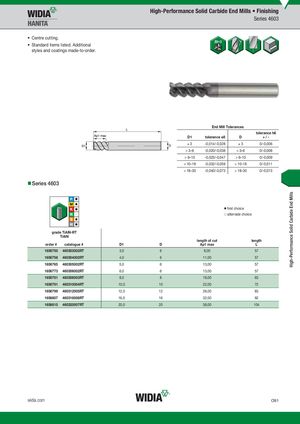

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series 4603 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 4603 ⅷ first choice ࠗ alternate choice graTdieATlNiA-RlNT-RT TiAlN length of cut length order # catalogue # D1 D Ap1 max L 1656750 460303002RT 3,0 6 8,00 57 1656758 460304002RT 4,0 6 11,00 57 1656765 460305002RT 5,0 6 13,00 57 1656773 460306002RT 6,0 6 13,00 57 1656781 460308003RT 8,0 8 19,00 63 1656791 460310004RT 10,0 10 22,00 72 1656799 460312005RT 12,0 12 26,00 83 1656807 460316006RT 16,0 16 32,00 92 1656815 460320007RT 20,0 20 38,00 104 widia.com O91
