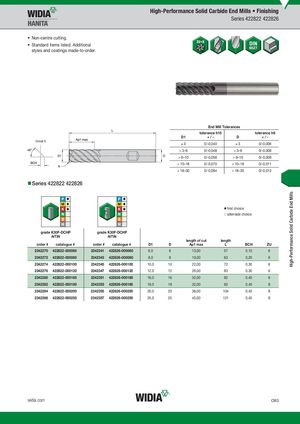

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series 422822 422826 • Non-centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- Detail X )3 0/-0,040 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 „Series 422822 422826 ⅷ first choice ࠗ alternate choice gradKe30KF3-0DFC-DHCPHP gradKe30KF3-0DFC-DHCPHP AlTiN AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH ZU 2342270 422822-000060 2342341 422826-000060 6,0 6 13,00 57 0,10 6 2342272 422822-000080 2342343 422826-000080 8,0 8 19,00 63 0,20 6 2342274 422822-000100 2342345 422826-000100 10,0 10 22,00 72 0,30 6 2342276 422822-000120 2342347 422826-000120 12,0 12 26,00 83 0,30 6 2342280 422822-000160 2342351 422826-000160 16,0 16 32,00 92 0,40 6 2342282 422822-000180 2342353 422826-000180 18,0 18 32,00 92 0,40 8 2342284 422822-000200 2342355 422826-000200 20,0 20 38,00 104 0,40 8 2342286 422822-000250 2342357 422826-000250 25,0 25 45,00 121 0,40 8 widia.com O93
