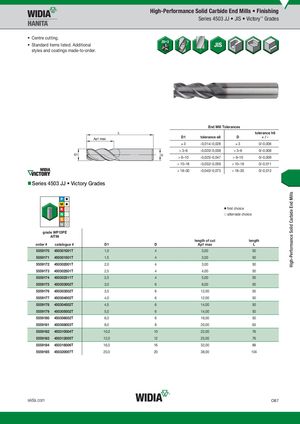

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series 4503 JJ • JIS • Victory™ Grades • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 4503 JJ • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D Ap1 max L 5559170 450301001T 1,0 4 3,00 50 5559171 450301501T 1,5 4 3,00 50 5559172 450302001T 2,0 4 3,00 50 5559173 450302501T 2,5 4 4,00 50 5559174 450302511T 2,5 4 5,00 50 5559175 450303002T 3,0 6 8,00 50 5559176 450303502T 3,5 6 12,00 50 5559177 450304002T 4,0 6 12,00 50 5559178 450304502T 4,5 6 14,00 50 5559179 450305002T 5,0 6 14,00 50 5559180 450306002T 6,0 6 16,00 50 5559181 450308003T 8,0 8 20,00 63 5559182 450310004T 10,0 10 22,00 76 5559183 450312005T 12,0 12 25,00 76 5559184 450316006T 16,0 16 32,00 89 5559185 450320007T 20,0 20 38,00 104 widia.com O87
