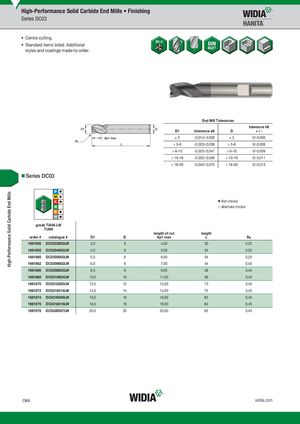

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series DC03 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series DC03 ⅷ first choice ࠗ alternate choice graTdieATlNiA-LlNW-LW TiAlN length of cut length order # catalogue # D1 D Ap1 max L R¡ 1661856 DC0303002LW 3,0 6 4,00 50 0,25 1661858 DC0304002LW 4,0 6 5,00 54 0,25 1661860 DC0305002LW 5,0 6 6,00 54 0,25 1661862 DC0306002LW 6,0 6 7,00 54 0,45 1661866 DC0308003LW 8,0 8 9,00 58 0,45 1661868 DC0310004LW 10,0 10 11,00 66 0,45 1661870 DC0312005LW 12,0 12 12,00 73 0,45 1661872 DC0314014LW 14,0 14 14,00 75 0,45 1661874 DC0316006LW 16,0 16 16,00 82 0,45 1661876 DC0318018LW 18,0 18 18,00 84 0,45 1661878 DC0320007LW 20,0 20 20,00 92 0,45 O86 widia.com
