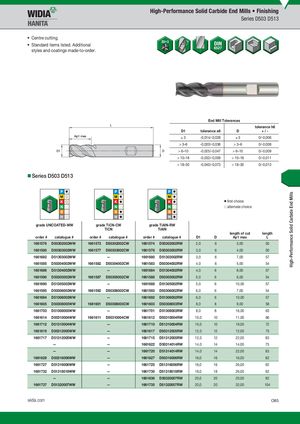

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series D503 D513 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series D503 D513 ⅷ first choice ࠗ alternate choice graUdNeCUONACTOEADT-EWD-WWW gradTeICTNiC-CNW-CW gradTeiATlNiA-RlNW-RW TiCN TiAlN length of cut length order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L 1661576 D50302002WW 1661573 D50302002CW 1661574 D50302002RW 2,0 6 3,00 50 1661580 D50303002WW 1661577 D50303002CW 1661578 D50303002RW 3,0 6 4,00 50 1661682 D51303002WW — 1661680 D51303002RW 3,0 6 7,00 57 1661585 D50304002WW 1661582 D50304002CW 1661583 D50304002RW 4,0 6 5,00 54 1661686 D51304002WW — 1661684 D51304002RW 4,0 6 8,00 57 1661590 D50305002WW 1661587 D50305002CW 1661588 D50305002RW 5,0 6 6,00 54 1661690 D51305002WW — 1661688 D51305002RW 5,0 6 10,00 57 1661595 D50306002WW 1661592 D50306002CW 1661593 D50306002RW 6,0 6 7,00 54 1661694 D51306002WW — 1661692 D51306002RW 6,0 6 10,00 57 1661605 D50308003WW 1661601 D50308003CW 1661603 D50308003RW 8,0 8 9,00 58 1661703 D51308003WW — 1661701 D51308003RW 8,0 8 16,00 63 1661614 D50310004WW 1661611 D50310004CW 1661612 D50310004RW 10,0 10 11,00 66 1661712 D51310004WW — 1661710 D51310004RW 10,0 10 19,00 72 1661619 D50312005WW — 1661617 D50312005RW 12,0 12 12,00 73 1661717 D51312005WW — 1661715 D51312005RW 12,0 12 22,00 83 — — 1661622 D50314014RW 14,0 14 14,00 75 — — 1661720 D51314014RW 14,0 14 22,00 83 1661629 D50316006WW — 1661627 D50316006RW 16,0 16 16,00 82 1661727 D51316006WW — 1661725 D51316006RW 16,0 16 26,00 92 1661732 D51318018WW — 1661730 D51318018RW 18,0 18 26,00 92 — — 1661636 D50320007RW 20,0 20 20,00 92 1661737 D51320007WW — 1661735 D51320007RW 20,0 20 32,00 104 widia.com O85
