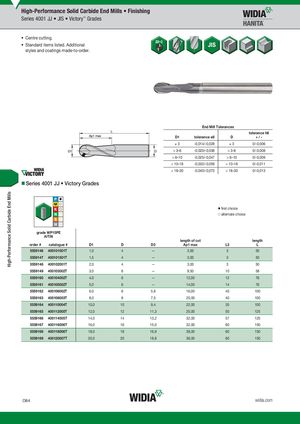

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series 4001 JJ • JIS • Victory™ Grades • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 4001 JJ • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L 5559146 400101001T 1,0 4 — 3,00 3 50 5559147 400101501T 1,5 4 — 3,00 3 50 5559148 400102001T 2,0 4 — 3,00 3 50 5559149 400103002T 3,0 6 — 9,50 10 58 5559160 400104002T 4,0 6 — 12,00 12 76 5559161 400105002T 5,0 6 — 14,00 14 76 5559162 400106002T 6,0 6 5,6 16,00 40 100 5559163 400108003T 8,0 8 7,5 20,00 40 100 5559164 400110004T 10,0 10 9,4 22,00 35 100 5559165 400112005T 12,0 12 11,3 25,00 50 125 5559166 400114005T 14,0 14 13,2 32,00 57 125 5559167 400116006T 16,0 16 15,0 32,00 60 150 5559168 400118006T 18,0 18 16,9 38,00 60 150 5559169 400120007T 20,0 20 18,8 38,00 60 150 O84 widia.com
