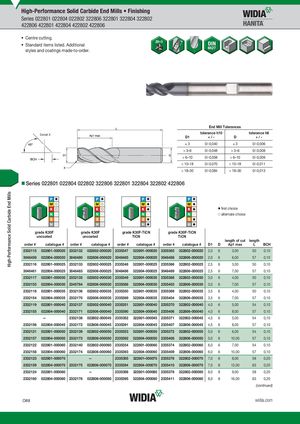

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series 022801 022804 022802 322806 322801 322804 322802 422806 422801 422804 422802 422806 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances Detail X tolerance h10 tolerance h6 D1 +/- D +/- )3 0/-0,040 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 „Series 022801 022804 022802 322806 322801 322804 322802 422806 ⅷ first choice ࠗ alternate choice graKde30KF30F graKde30KF30F graKde30KF3-0TFIC-TNiCN graKde30KF3-0TFIC-TNiCN uncoated uncoated TiCN TiCN length of cut length order # catalogue # order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L BCH 2332115 022801-000020 2332132 022802-000020 2335347 322801-000020 2335365 322802-000020 2,0 6 3,00 50 0,10 3048459 022804-000020 3048480 022806-000020 3048485 322804-000020 3048488 322806-000020 2,0 6 6,00 57 0,10 2332116 022801-000025 2332133 022802-000025 2335348 322801-000025 2335366 322802-000025 2,5 6 3,00 50 0,10 3048461 022804-000025 3048483 022806-000025 3048486 322804-000025 3048489 322806-000025 2,5 6 7,00 57 0,10 2332117 022801-000030 2332135 022802-000030 2335349 322801-000030 2335368 322802-000030 3,0 6 4,00 50 0,10 2332153 022804-000030 2345784 022806-000030 2335388 322804-000030 2335403 322806-000030 3,0 6 7,00 57 0,10 2332118 022801-000035 2332136 022802-000035 2335350 322801-000035 2335369 322802-000035 3,5 6 4,00 50 0,10 2332154 022804-000035 2332170 022806-000035 2335389 322804-000035 2335404 322806-000035 3,5 6 7,00 57 0,10 2332119 022801-000040 2332137 022802-000040 2335351 322801-000040 2335370 322802-000040 4,0 6 5,00 54 0,10 2332155 022804-000040 2332171 022806-000040 2335390 322804-000040 2335406 322806-000040 4,0 6 8,00 57 0,10 — 2332138 022802-000045 2335352 322801-000045 2335371 322802-000045 4,5 6 5,00 54 0,10 2332156 022804-000045 2332172 022806-000045 2335391 322804-000045 2335407 322806-000045 4,5 6 8,00 57 0,10 2332121 022801-000050 2332139 022802-000050 2335353 322801-000050 2335372 322802-000050 5,0 6 6,00 54 0,10 2332157 022804-000050 2332173 022806-000050 2335392 322804-000050 2335408 322806-000050 5,0 6 10,00 57 0,10 2332122 022801-000060 2332140 022802-000060 2335354 322801-000060 2335374 322802-000060 6,0 6 7,00 54 0,10 2332158 022804-000060 2332174 022806-000060 2335393 322804-000060 2335409 322806-000060 6,0 6 10,00 57 0,10 2332123 022801-000070 — 2335355 322801-000070 2335376 322802-000070 7,0 8 8,00 58 0,20 2332159 022804-000070 2332175 022806-000070 2335394 322804-000070 2335410 322806-000070 7,0 8 13,00 63 0,20 2332124 022801-000080 — 2335356 322801-000080 2335378 322802-000080 8,0 8 9,00 58 0,20 2332160 022804-000080 2332176 022806-000080 2335395 322804-000080 2335411 322806-000080 8,0 8 16,00 63 0,20 (continued) O88 widia.com
