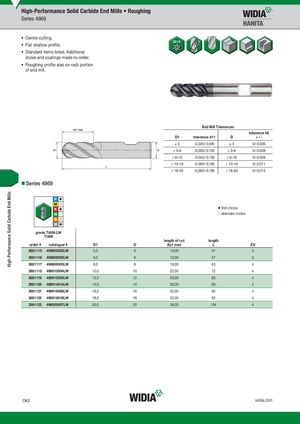

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 4969 • Centre cutting. • Flat shallow profile. • Standard items listed. Additional styles and coatings made-to-order. • Roughing profile also on radii portion of end mill. End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/-0,006 > 3–6 -0,030/-0,105 > 3–6 0/-0,008 > 6–10 -0,040/-0,130 > 6–10 0/-0,009 > 10–18 -0,050/-0,160 > 10–18 0/-0,011 > 18–30 -0,065/-0,195 > 18–30 0/-0,013 „Series 4969 ⅷ first choice ࠗ alternate choice graTdieATlNiA-LlNW-LW TiAlN length of cut length order # catalogue # D1 D Ap1 max L ZU 3881115 496905002LW 5,0 6 13,00 57 3 3881116 496906002LW 6,0 6 13,00 57 3 3881117 496908003LW 8,0 8 16,00 63 4 3881118 496910004LW 10,0 10 22,00 72 4 3881119 496912005LW 12,0 12 26,00 83 4 3881120 496914014LW 14,0 14 26,00 83 4 3881121 496916006LW 16,0 16 32,00 92 4 3881122 496918018LW 18,0 18 32,00 92 4 3881123 496920007LW 20,0 20 38,00 104 4 O62 widia.com
